IBM ThinkPad T42 Modem Daughter Board Replacement

Geschrieben von: Gerald Watanabe
  • Kommentare: 3
IBM ThinkPad T42 Modem Daughter Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

20 - 25 Minuten

Einleitung

This guide will demonstrate the removal and replacement procedures for an IBM ThinkPad T42 Modem Daughter Board.

  1. nOVTwh1ZZiXj2xdv

    • Use a Phillips #0 screwdriver to remove the twenty screws on the underside of the T42.

  2. XSANOcwcEWryUkJN

    • Remove the four Phillips screws located on either side of the rear of the T42 (there are two on each end.)

    leave these four screws alone. No need to remove them.

    fredwb -

    Of course you need to remove them you Dingbat! They are the main anchors of the screen hinges, Doh!

    wbcam -

    There are tiny numbers showing the lengths of the screws. 1-2-3-4 where 1 is the shortest.

    The dark red circles are not very easy to see. How about white ones?

    mattikaki -

  3. iuUeFsBx4Wrj2uXb

    • Flip the laptop over and open the screen to access the keyboard and trackpad.

    • The keyboard and trackpad are connected to the motherboard. Before removing the keyboard and trackpad, disconnect both components from the motherboard, as shown in the following step.

    • The bezel and keyboard will be loose, be careful.

  4. GTJtY3mGQRbaQ12t
    GTJtY3mGQRbaQ12t
    wTbnWCPMvL2LQsAX

    • Carefully maneuver the palm rest away from the keyboard, as both the keyboard and palm rest/trackpad will come off together.

    • Remember, both the keyboard and trackpad have connectors to the motherboard. Disconnect these before completely removing either component.

  5. 6i5PGa2yL6aGxTrg
    6i5PGa2yL6aGxTrg
    CIGycC2sHsirWPHs

    • Starting from the bottom right, carefully remove off the bezel. Use a spudger or flat head screwdriver if needed.

  6. i1vLytFH32QeZQdS
    i1vLytFH32QeZQdS
    vcquRAQcS1PEJSrQ

    • Grasp the metal bracket to remove it from the device.

  7. eXCF6BnLTV545WJu

    • Remove the rubber cover from the microphone.

  8. TZyJRBSGvZgp4QE2

    • Next, unscrew the 3 Phillips screws in red.

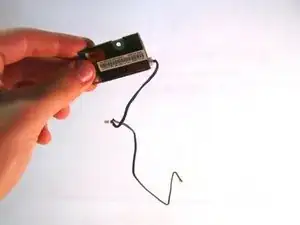

  9. M4EjkpKliLAGpicG

    • The cables are routed through different components for organization, carefully disconnect them, unwrap them and pull the card free.

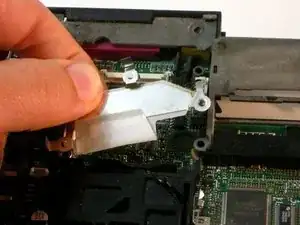

  10. 1btxqaPaEwWhc4vS

    • Lastly, remove the bracket sitting beneath it.

    • The end!

Abschluss

To reassemble your device, follow these instructions in reverse order.
