IBM ThinkPad T42 Optical Drive Replacement

Geschrieben von: Gerald Watanabe
  • Kommentare: 1
IBM ThinkPad T42 Optical Drive Replacement

Schwierigkeitsgrad

Very easy

Schritte

3

Zeitaufwand

1 - 2 Minuten

Einleitung

Removing the optical drive is extremely easy and will only a take a minute.

  1. S5pTr3g4sMpj1PQB

    • Remove the single screw holding the optical drive on the underside of the laptop

  2. TV2ZYEPdcNEKGwDE

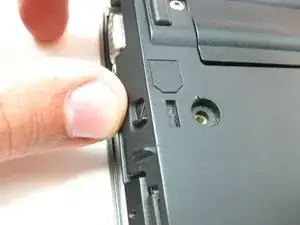

    • Push the small slider to unlock position, a tab will automatically pop out.

  3. PNv5AEEJsWfwcOn3

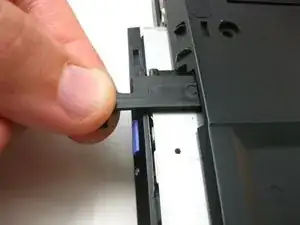

    • Pull the tab to dislodge the optical drive, then carefully pull the drive out.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Gerald Watanabe

Mitglied seit: 14/04/10

279 Reputation

Ein Kommentar

What’s the interface for the optical drive? SATA? IDE?

Jonas Gamao -
