IBM ThinkPad T42 Speakers Replacement

Geschrieben von: Gerald Watanabe
  • Kommentare: 3
IBM ThinkPad T42 Speakers Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide will show you how to replace the speakers on the IBM ThinkPad T42.

If your T42 audio output is distorted or not functioning due to a damaged speaker, you can restore the sound quality by replacing the speaker using this easy-to-follow guide.

Power down the T42 and disconnect from any power supply before you begin.

  1. nOVTwh1ZZiXj2xdv

    • Use a Phillips #0 screwdriver to remove the twenty screws on the underside of the T42.

  2. XSANOcwcEWryUkJN

    • Remove the four Phillips screws located on either side of the rear of the T42 (there are two on each end.)

    leave these four screws alone. No need to remove them.

    fredwb -

    Of course you need to remove them you Dingbat! They are the main anchors of the screen hinges, Doh!

    wbcam -

    There are tiny numbers showing the lengths of the screws. 1-2-3-4 where 1 is the shortest.

    The dark red circles are not very easy to see. How about white ones?

    mattikaki -

  3. iuUeFsBx4Wrj2uXb

    • Flip the laptop over and open the screen to access the keyboard and trackpad.

    • The keyboard and trackpad are connected to the motherboard. Before removing the keyboard and trackpad, disconnect both components from the motherboard, as shown in the following step.

    • The bezel and keyboard will be loose, be careful.

  4. GTJtY3mGQRbaQ12t
    GTJtY3mGQRbaQ12t
    wTbnWCPMvL2LQsAX

    • Carefully maneuver the palm rest away from the keyboard, as both the keyboard and palm rest/trackpad will come off together.

    • Remember, both the keyboard and trackpad have connectors to the motherboard. Disconnect these before completely removing either component.

  5. i1vLytFH32QeZQdS
    i1vLytFH32QeZQdS
    vcquRAQcS1PEJSrQ

    • Grasp the metal bracket to remove it from the device.

  6. eXCF6BnLTV545WJu

    • Remove the rubber cover from the microphone.

  7. mIHtvCs4CMEVKYY2
    mIHtvCs4CMEVKYY2
    KZDxeCBkOFDHUNwZ

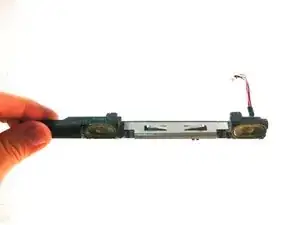

    • Check to ensure the speaker cartridge moves freely before removing the cartridge.

    • Disconnect the speaker wire from the unit and carefully remove the speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
