IBM ThinkPad X41 Fan and Heat Sink Replacement

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

35 - 45 Minuten

Einleitung

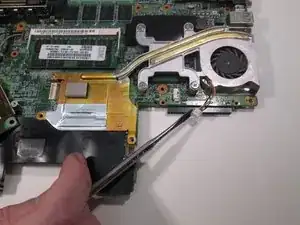

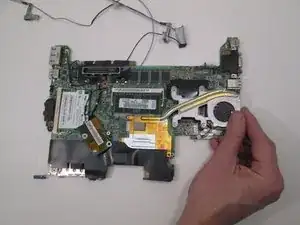

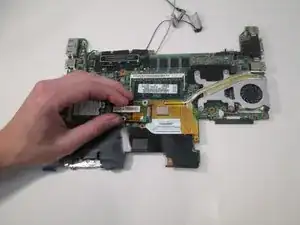

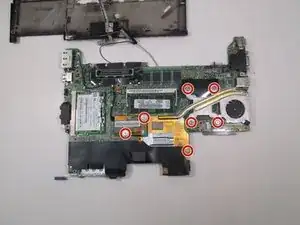

This guide can be used to replace the fan and heat sink assembly in the IBM ThinkPad X41. This guide will demonstrate how to disassemble the laptop in order to reach the assembly.

Werkzeuge

Schritt 1

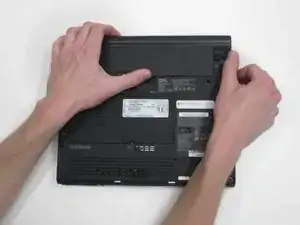

Turn laptop over, make sure lid side is faced down.

Schritt 2

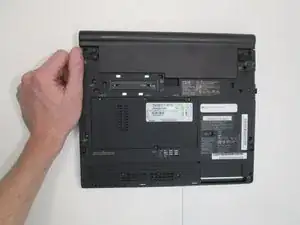

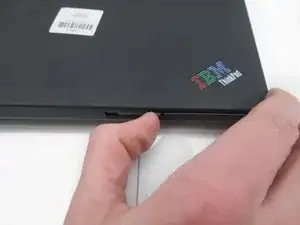

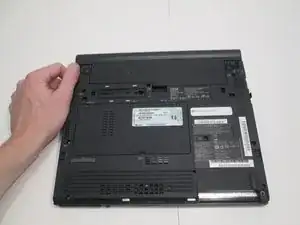

Locate battery release button lock on laptop, and press down.

Schritt 3

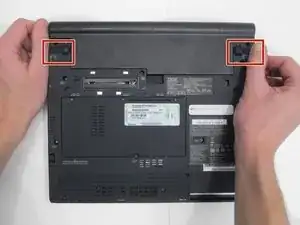

Hold laptop battery release button and gently pull battery away from laptop.

Schritt 4

Slide outward to unlock and lift battery up to remove.
Remove battery before keyboard to avoid damage to battery.

Schritt 5

With a Phillips PH000 to remove all six 6 mm screws identified for the keyboard as shown.

Schritt 6

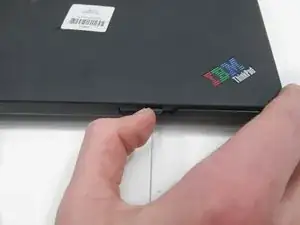

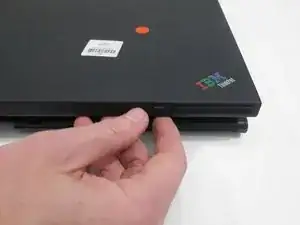

Flip the laptop over once more returning it to its upright position and open laptop .

Schritt 7

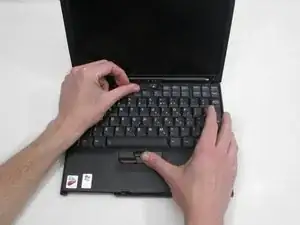

Using your left hand, place thumb on the upper part of the keyboard and place your other thumb on the bottom part of the keyboard.
Push firmly upward with both thumbs. This will detach keyboard from base.

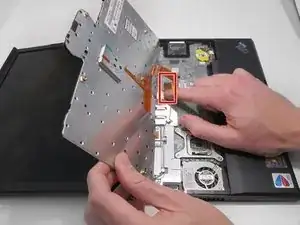

Be cautious when lifting as there is an orange connection cable still attached to the bottom side.

Schritt 8

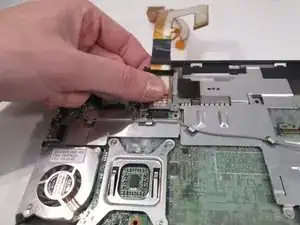

Detach the connection to the motherboard by first sliding it towards you, then pulling upward away from your body.
This step's directions are based on the angle shown .

Schritt 9

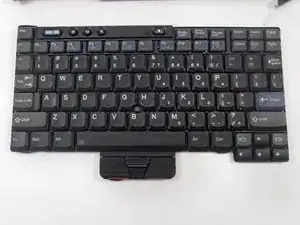

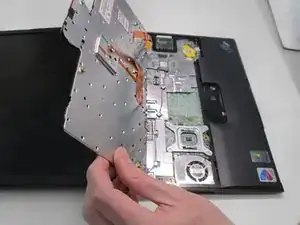

Lift the entire keyboard off the laptop.

Schritt 10

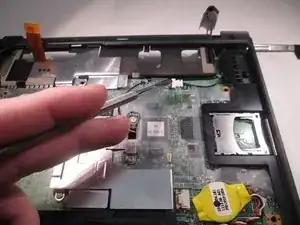

At the top right of the laptop remove the white tab connected to the motherboard by pulling it to the right.
The regular black nylon spudger should be used whenever possible, especially around sensitive internal components.
The display was already removed from another guide.

Schritt 11

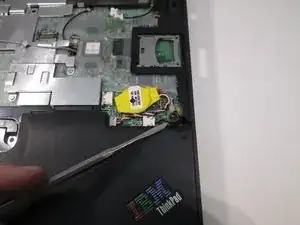

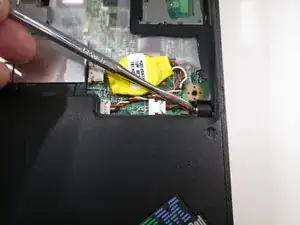

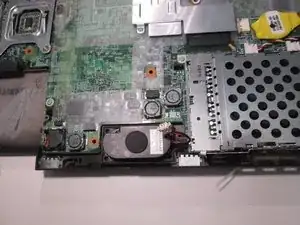

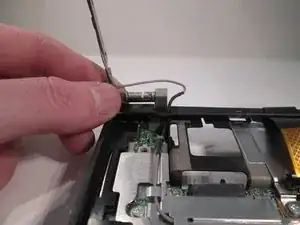

At the bottom right of the laptop remove the black cylinder by lifting it up and out of the depression.

Schritt 12

Move to the back of the laptop.
Remove the two 5mm screws holding the monitor and cover to the case using a phillips head screwdriver.

Schritt 13

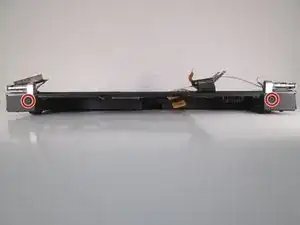

Pull up on the metal hinges to remove the display that is held in on the two sides of the laptop.

Schritt 14

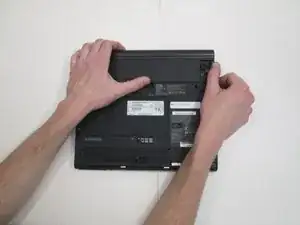

Flip the laptop upside down.

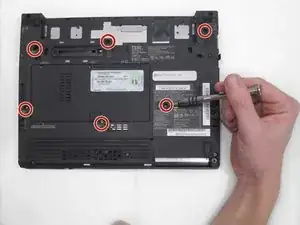

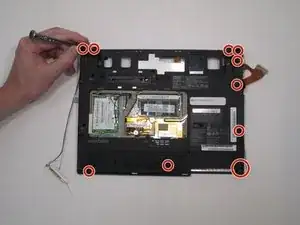

Remove the indicated 5mm screws with a phillips head screwdriver.

Schritt 15

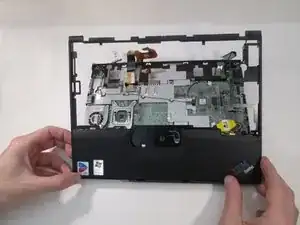

With the laptop right side up facing you lift from the sides and pull the cover toward you.

Schritt 16

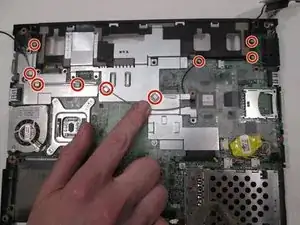

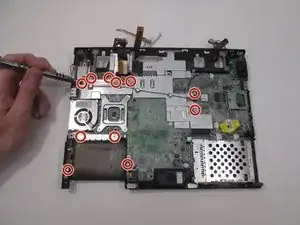

Remove the indicated 4mm screws with a philips head screwdriver.

Schritt 17

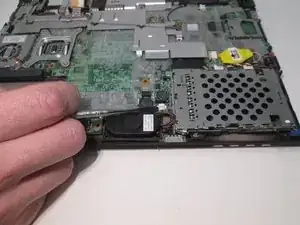

Remove the white tab at the bottom connected to the speaker by sliding it to the right.

Schritt 18

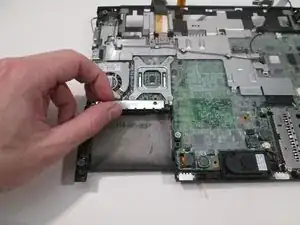

Remove the metal bracket by pulling it up.

Schritt 19

Remove the display connection by pulling it up.

Schritt 20

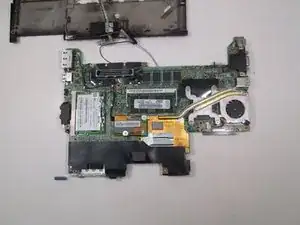

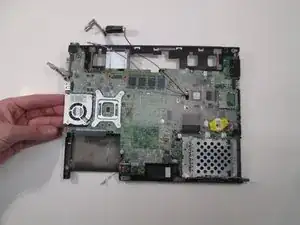

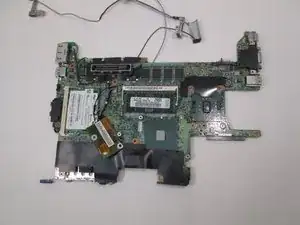

Remove the metal plate covering the motherboard by removing the gray wire from the indicated hooks and pulling the plate up. While you are here remove the other black wire from the indicated hooks as well.
