IBM ThinkPad t43 RAM Replacement

Geschrieben von: aLiX pIeRRe
  • Kommentare: 1
IBM ThinkPad t43 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

1 - 3 Minuten

Einleitung

Replacing or upgrading the RAM for the IBM T43 can give it a greater performance boost.

  1. xpXMLVVuVBvWVU4J
    xpXMLVVuVBvWVU4J
    lCHEbBlW2A4jbstZ
    ZuHLhG1JWZRK3dwQ

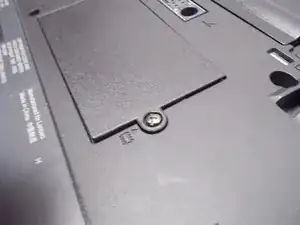

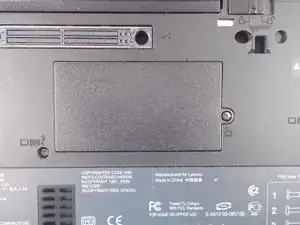

    • To remove the cover, you will need to take out the single screw.

    • Unscrew until the cover comes off

    • Lift the cover from the edge and pull off

    • If the cover doesn't come right up and you have felt that you have unscrewed it, you can lift the cover and the screw will come off with it.

  2. VXMPlfU6SKd4buoO
    VXMPlfU6SKd4buoO
    onkxuwoE2nowGERk
    QIw4XqWFOQpQWkZC

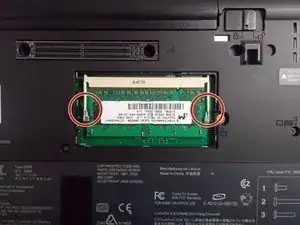

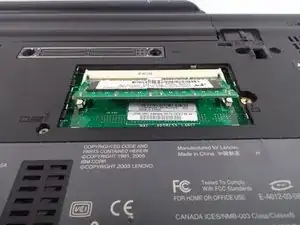

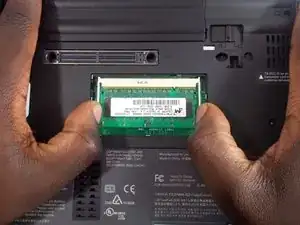

    • Place your hands on the clips and push on them outward until the RAM pops out

  3. LhNbesJwXDogEOkV
    LhNbesJwXDogEOkV
    ERbBqVKZxoqktTBn

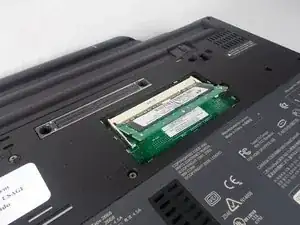

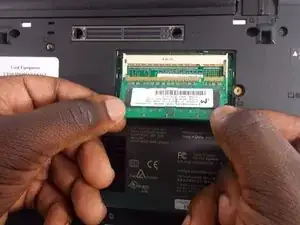

    • Place hands on the RAM and pull towards yourself

    • For replacement, follow these steps in reverse order

    • Make sure that when you put in the ram that the short side is on the right

    There is an additional ram slot under the keyboard btw

    Max -

Abschluss

To reassemble your device, follow these instructions in reverse order.
