IBM ThinkPad t43 WiFi Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

This Guide shows the how to remove and replace the WiFi Card of this device.

  1. KRKvyTZJsr2RTnqf
    KRKvyTZJsr2RTnqf
    ZeDJaBrEOQMjFaEM

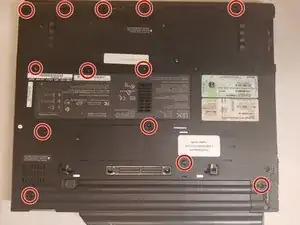

    • Start with the laptop with the side with the logo facing down.

    • Next you will have to remove all the screws in the red circles

    • When removing the screws try to place them in order of removal on a magnetic pad. It will help when you put them back and lowers the chance of losing them

    There are two more screws that have to be removed before the keyboard can be removed. The first one is in the top right corner of the picture above, and the second is along the right hand edge of the base, 85 millimetres down from the first screw.

    Colin Hart -

  2. g141fqwCQOtQcVKe
    g141fqwCQOtQcVKe
    Gi1xFirovp1thLYV

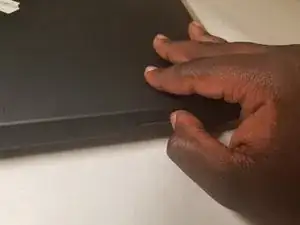

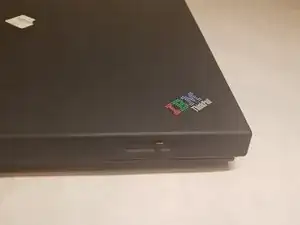

    • Flip the laptop so that the logo is now facing up

    • locate the lock switch on the front right

    • Slide the switch to the right to unlock the laptop

    • Make sure to unlock the laptop before opening because the keyboard may still be attached

  3. ZXJPwZiBcWtbIr5D
    ZXJPwZiBcWtbIr5D
    12dQo6sYXUB3ETfB

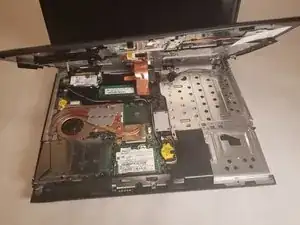

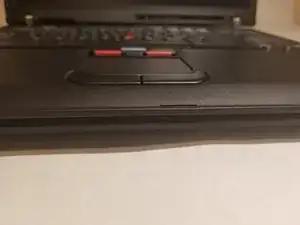

    • Lift open the laptop

    • The keyboard should be detached from the bottom part of the laptop

    • Hold the edges of the keyboard and slowly pull up until it opens

    • Do not pull off the keyboard completely because there is a ribbon cable attached

  4. Vydpb4YUQJh2nuiy
    Vydpb4YUQJh2nuiy
    E5LnpUs4WhBTpIgx

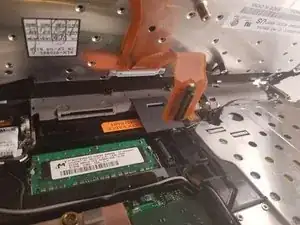

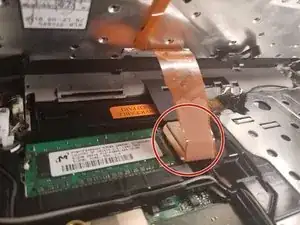

    • Disconnect the ribbon cable by simply lifting it up

  5. wNQg5frdUjsiYBOg

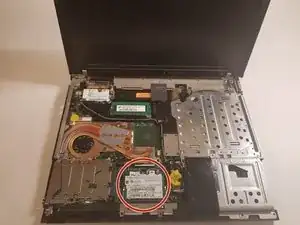

    • The WiFi-Card is located towards the middle bottom of the laptop

  6. tPCLEpFFuVhaUual
    tPCLEpFFuVhaUual
    D41ZdausZGRAldRS

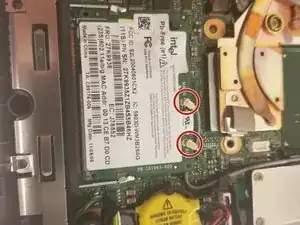

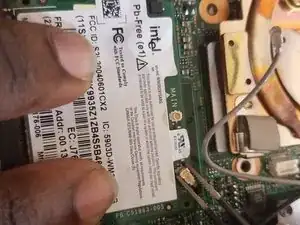

    • Locate the two wires connected at the top of the WiFi-Card

    • Hold the card down and use the tweezers to pinch the plug and pull up.

  7. YDR4Q1vQC46ByQcX
    YDR4Q1vQC46ByQcX
    uLoPqY4Yh6IWOXmi
    2hdONUOW5NtMbkyZ

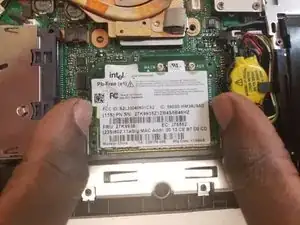

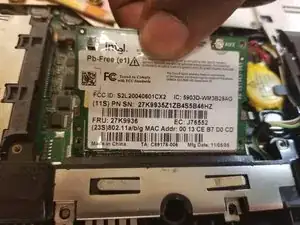

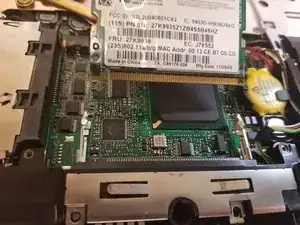

    • Place fingers on the two clips holding the card in place

    • Pull the clips outwards until the the card pops up

    • Pull the card out by pulling out away from your body

    • To replace, follow these steps in reverse order

    • Make sure that the side with the short end is on the left when you put it back in.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

aLiX pIeRRe

Mitglied seit: 19/03/18

816 Reputation

2 Kommentare

I need to know what's role of the cables AUX and MAIN because i cut one

M a n i _001 -

AUX and MAIN cables are antenna cables. In this laptop there are two antennas, MAIN and AUX.

If you have a soldering iron, simply solder the two parts of the cable you cut and everything is gonna be fine.

I also recommend using shrink tubing to isolate the soldered part.

Note : laptop can work without this câble, but WiFi speed and stability will suffer.

If you can't solder the câble or can't by a new one, you can try to use only main by pluggin the only remaining antena câble to MAIN and leaving AUX unlpuged.
