IBM Thinkpad T60 Wireless Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide shows how to remove a previously existing wireless card. Be sure you are comfortable with the palm rest and keyboard removal guides before attempting this guide. Remember to always power down the computer before attempting any installation/removal of any hardware components. Be sure to remove the AC adapter and all cables from the computer. If the computer has been on, wait several minutes before beginning the procedure to ensure all parts have cooled down.

  1. pxKP25VakaqJM3rP

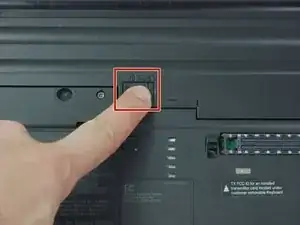

    • Turn the computer over to see the small tab on the battery located near the top of the Thinkpad.

    • Use your finger to slide the tab to the right to unlock the battery.

  2. QodwUu6CGdxUBYBV
    QodwUu6CGdxUBYBV
    hIwp5OAfuMHDONek

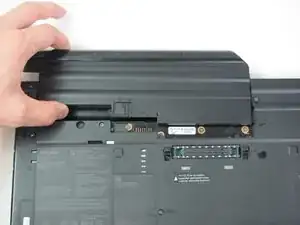

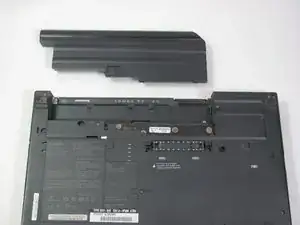

    • Once the tab is in the unlocked position (far right), pull the battery outwards away from the Thinkpad.

    • The battery is now disconnected.

  3. Je6uJb5XYwZY4DiI
    Je6uJb5XYwZY4DiI
    1Mo46ptbOYIxXhLo

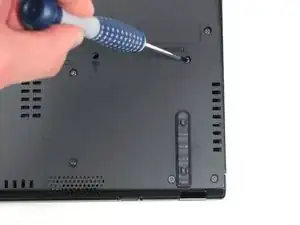

    • Using a #0 Phillips screwdriver, remove the four 17.0 mm screws.

    The screws we need to remove all supposedly share the same pictogram imprinted on the bottom case. If this is true why have you circled the rightmost screw in the photo above? The forth pictogram is near the screw below and to the left of the circled screw?

    airshack -

  4. 2VCe5GLSSEb3OXXO

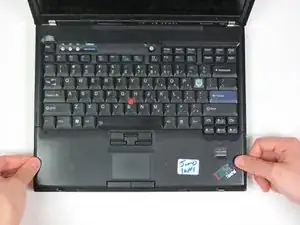

    • Turn the computer back over, so the keyboard is facing upwards.

    • Open the display to access the palm rest. Apply pressure to the sides of the palm rest so that it bends upwards in the middle. Gently lift away from the computer.

  5. AVfsZTiSYoGAERIR
    AVfsZTiSYoGAERIR
    3sgYdGE1AnDKFPbM

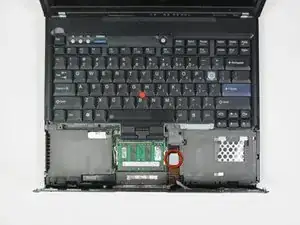

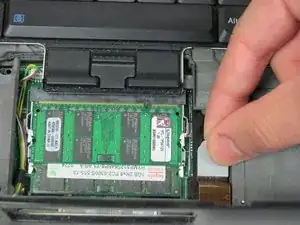

    • Slightly lift the palm rest away from the computer.

    • The touchpad's data cable connects the palm rest to the base unit. BE CAREUL!

    • Detach the connector by pulling upwards on the white tab.

    Putting it back on should be covered too, as it’s really hard to get everything lined up. Would be nice for some tips on that. Took me and other experienced guy 45 minutes to get the thing back on, and have all the screws seat!

    Glenn -

    Where in this guide does it say how much RAM is supported? Am I missing something? Looks like two slots?

    airshack -

  6. Tig3sk2hycBiFQJT
    Tig3sk2hycBiFQJT
    ABfKNZgS4ZbVpid2

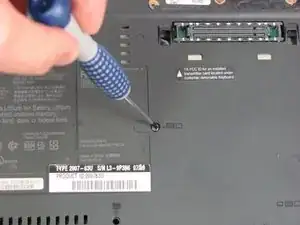

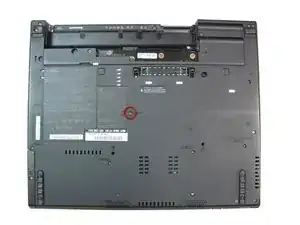

    • Turn the Thinkpad over so you can see the bottom.

    • Using a #0 Phillips screwdriver, remove the 17.0 mm screw.

  7. QNUXRq4nVVk3S6qo
    QNUXRq4nVVk3S6qo
    Gsba4enXujm5raRN

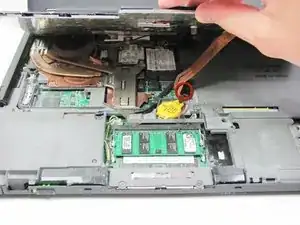

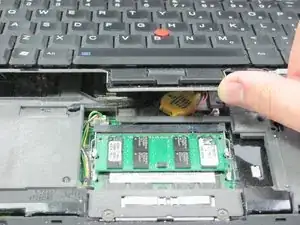

    • First, flip the laptop back over. Next, use your fingers to pry the keyboard upwards slightly.

    • Lift the keyboard until you are able to see the wire connection

    The cable from the WLAN module could interfere with the installation of the new keyboard.

    Alex Barblexi -

  8. n4KNgETUPpBEGSBt
    n4KNgETUPpBEGSBt
    YeBJLuUMnIEDmTqD

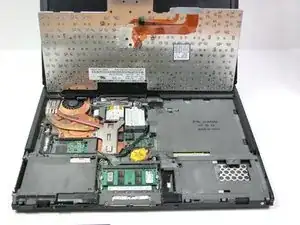

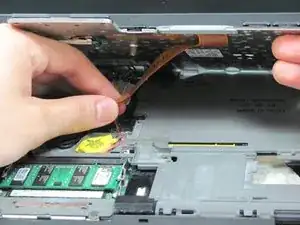

    • Pull upwards on the connector to disconnect the keyboard.

    • The keyboard is now disconnected.

  9. Ijxiglf4S1IOv3lR
    Ijxiglf4S1IOv3lR
    MJeTWAOn4M2DNis2

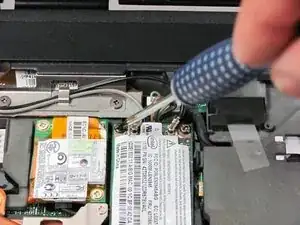

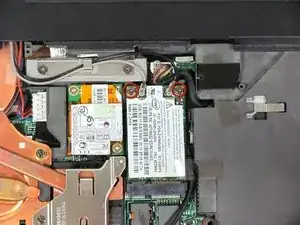

    • Using a #0 Phillips screwdriver, remove the two 10.5 mm screws.

  10. rkDADWSSA5lkqVE6
    rkDADWSSA5lkqVE6
    1UM2dMZZSRyTxxSq

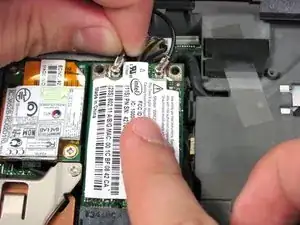

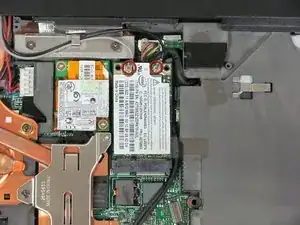

    • Disconnect the two connectors by pulling upwards on the base of the grey and black cables.

  11. AIH4CHHRumHHlpZC

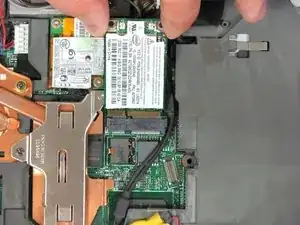

    • Grasp the sides of the card and pull perpendicular to the slot.

    • The wireless card is now disconnected.

Abschluss

To reassemble your device, follow these instructions in reverse order.
