IBM Thinkpad T61 Disc Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

30 Sekunden

Einleitung

If your computer has trouble reading discs and/or the disc drive is not working, it might need to be replaced. This guide will show you step by step how to replace the disc drive.

  1. SsrV6nDSoHTjwdBp

    • Place the computer on its side so that the disc drive is facing up.

    • Push in the release lever shown.

  2. VQQDTSwhUxUOshaR

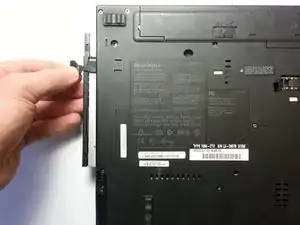

    • Once the tab pops out, pull it away from the computer to release the disc drive.

  3. BsDcvKZDPbXXc6Zd
    BsDcvKZDPbXXc6Zd
    QLfSmhL4JJxAJqxC

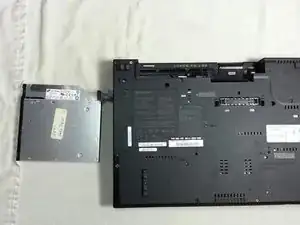

    • Pull the disc drive away from the laptop to fully remove it.

  4. niFUILKFhXJbQuZm

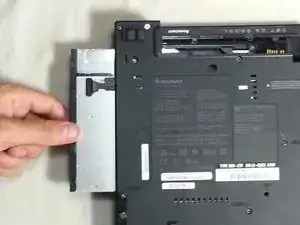

    • Insert new disk drive back into laptop

  5. VXnNjLvrbIZ4Ibkd

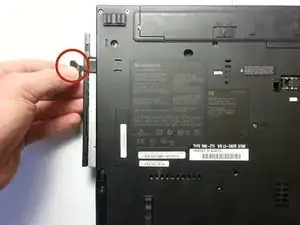

    • Be sure to push the pull tab in as shown in the picture.

Abschluss

To reassemble your device, follow these instructions in reverse order.
