ILVE Microwave Replacement Bulb Replacement

Remove the brown plug.

The screw attaching the microwave is below

Remove the cross point screws from the outer case back

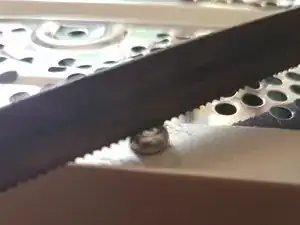

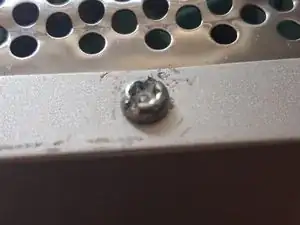

One screw has a tamper proof head so cut a slot it in and unscrew with a flat head screw driver.

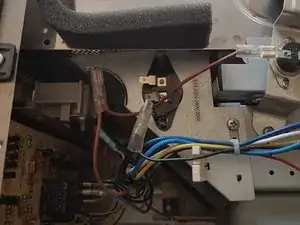

The socket is on top right side of the microwave

Remove the plugs

Bend up the metal clips, and pull out the socket

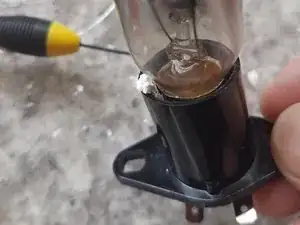

Remove the white glue (or sealer) that's around the bulb screw using a small screw driver.

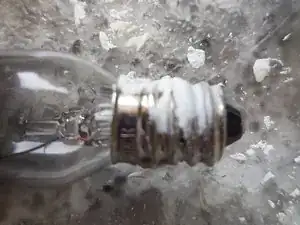

The glue goes all the way down the thread so remove as much as you can see.

Use leather gloves to unscrew incase the bulb breaks. It need quite a lot of force so make really sure you've got every bit a glue out.

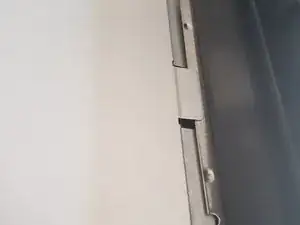

When you re assemble the outer case make sure the tabs on the front go either side of the front.
