IdeaPad Yoga 13 Charging Port Replacement

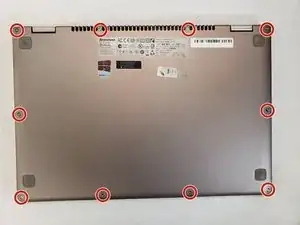

Remove all ten screws using the T4 Torx screwdriver.

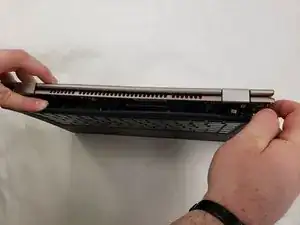

Remove the back cover from the device.

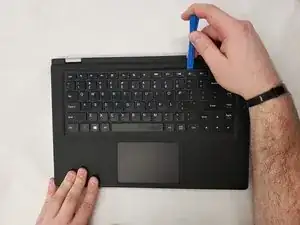

Use the blue opening tool to further separate the keyboard bezel.

Carefully apply pressure to the keyboard. It should easily pop out.

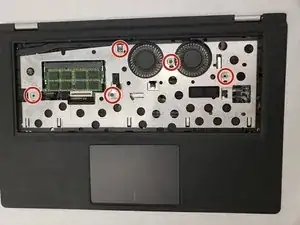

To remove the keyboard bezel, unscrew and remove the five screws using the Phillips #0 screwdriver.

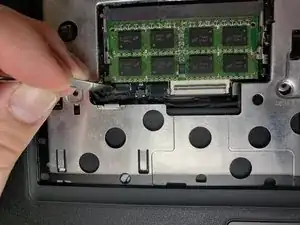

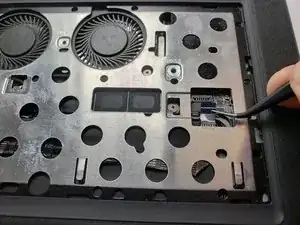

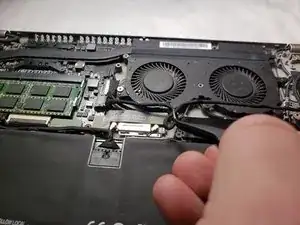

Unplug the connections from the motherboard.

There is a different connection for the mouse and keyboard.

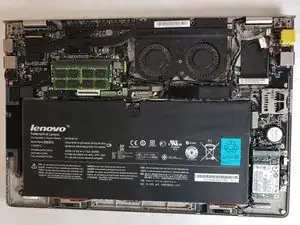

Remove the outer bezel to reveal the entire internal layout of the computer.

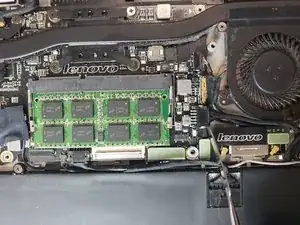

Motherboard and other internal components are now exposed.

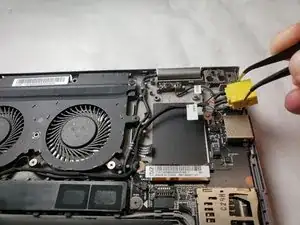

Remove charging port by prying out the yellow port from the computer chassis.

Note the route of the cable for re-installation of the replacement.
