IdeaPad Yoga 13 RAM Module Replacement

Geschrieben von: Remington Jones
  • Kommentare: 7
IdeaPad Yoga 13 RAM Module Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

3 Minuten

Einleitung

Random Access Memory (RAM) stores programs and files for quick access while a computer is running. Damaged or defective RAM can lead to erratic behavior within programs and operating systems; insufficient capacity can make the laptop run slowly.

  1. UrvBYNsXqXP1lNlf

    • Power off your laptop before beginning disassembly.

    • Open the laptop to locate the keyboard.

  2. uEaPMFNnkQkelVus
    uEaPMFNnkQkelVus
    kbYCaWiqhcGDfj6e

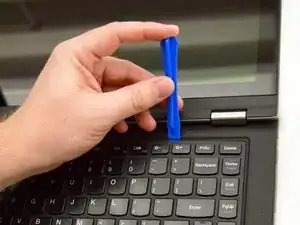

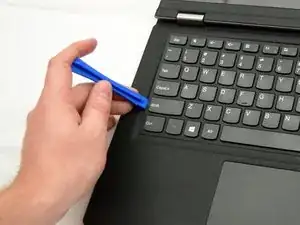

    • Insert a plastic opening tool in the seam between the keyboard and laptop body.

    • Carefully run the tool around the top and sides of the keyboard to pop out the 9 tabs holding in the keyboard.

  3. DLVyQRSUJDLICy5S
    DLVyQRSUJDLICy5S
    xwSJNHTjKDmNE6dI
    xBWyaaI1ZpOFM2fU

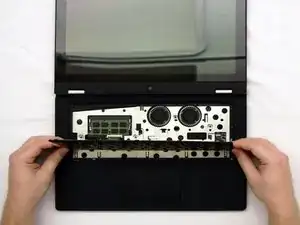

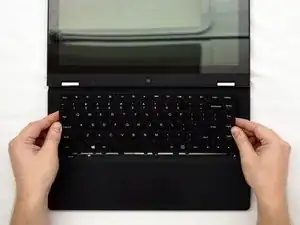

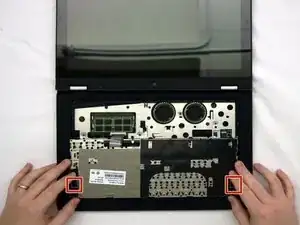

    • Lift the keyboard up, then pivot it towards you to lay it facedown on the trackpad and palm rests.

    • Be careful when lifting the keyboard up. The ribbon cable connecting it to the motherboard is very short, and the connector is fragile.

    • The top corners of the keyboard may be stuck to the laptop bezel with double sided tape. See rectangles in Image 3. Be careful as you lift the keyboard up and pivot it toward you.

    My keyboard was also stuck down with double sided tape near the sides 1cm down from the top edge. These didn't want to let go easily, be careful pulling them away.

    Frank Puranik -

    Also, on my keyboard there are metal latches under the keyboard. To remove the keyboard it needs to be slid towards the screen a few mm before you can lift it. When reassembling do the reverse, engaging the latches, or the keyboard will not stay down properly.

    Frank Puranik -

  4. gPfEFjpJMwdUqKgR
    gPfEFjpJMwdUqKgR
    uq1tYmhOuSGatZuo
    1Y5MG5by1NLZdtJH

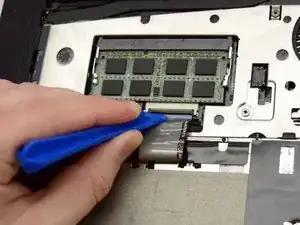

    • Locate the ribbon cable connecting the keyboard to the motherboard.

    • Use the tip of the opening tool to lift the black flap on the connector.

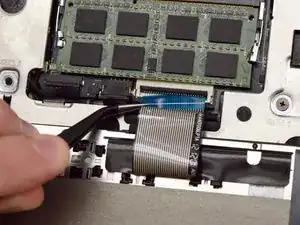

    • With the twezers, gently lift the ribbon cable out of the connector.

    • Be careful when reinserting the ribbon cable.

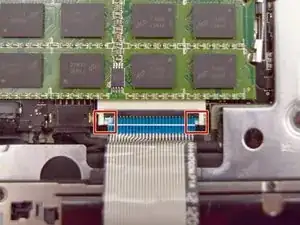

    • Ensure the cutouts on the end of the cable match the tabs on the connector.

    The cable is not lifted . It should be pulled parallel to the line of the memory chips. The Lenovo service guide makes this clear.

    Frank Puranik -

    Getting the cable back i was tricky. in the end I almost had the keyboard vertical to east the bend on the connector as I pushed it back in gently - then it finally went in. When you push the retaining flap back down the white line on the ribbon cable should just be showing - then you have it in properly.

    Frank Puranik -

    also you may think you’ve not got the cable in enough but actually when you flip the tab down if you can see about a.1.5mm of cable above the white line you should be good. just turn on the computer to check keyboard works before screwing back together

    Tollon Adkins -

    where can i buy original battery for my lenovo yoga 13 ideapad in gurgaon?

    Premlata -

  5. RDkPPTAVSsw6EwiM
    RDkPPTAVSsw6EwiM
    NRULmJj2u2TUwxaP

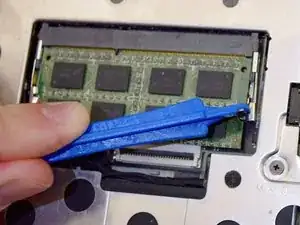

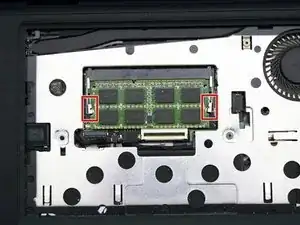

    • Locate the RAM module.

    • Locate the retention clips holding the module in place, and gently push them outwards.

  6. uLiEWXyaQLIRSPJe

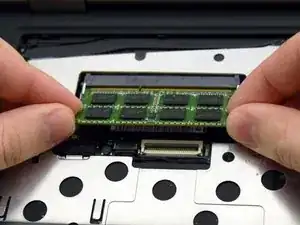

    • The RAM module should pop up at an angle and can be lifted out.

    • When re-installing, insert the RAM module at the same angle, then push it down to re-engage the retention clips.

Abschluss

To reassemble your device, follow these instructions in reverse order.
