Impression i7 Front Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

2 - 10 Minuten

Einleitung

This guide details the necessary steps to remove the front facing camera from the Leader Impression i7 tablet. Make sure you have a replacement camera ready before starting this guide.

  1. 6SMkJO2Pq3XEgRvg

    • Wedge the plastic opening tool into the seam nearest to the screen surface and begin to pry off the back of the device.

  2. ECtRxAuScwNDiEDP

    • Move the plastic opening tool along the perimeter of the device, loosening the entire back as you go.

  3. mKeZrnYQ3mRPwKDN

    • After the entire perimeter has been pried, remove the back of the device.

    • Be careful not to disconnect the speaker and microphone cables attached to the back of the tablet.

  4. TpZueD4I4S1X21aK
    TpZueD4I4S1X21aK
    qLHfVjjvqGZvsxaq

    • Remove the transparent, orange tape from the edge of the battery.

    • Pry the battery off, using the plastic opening tool.

  5. FmMAkSLB41jKXRse

    • Desolder the positive and negative leads.

  6. EAjMmd3igTfS23U3
    EAjMmd3igTfS23U3
    VbivP2DVy5MxZaDR

    • Pull the battery away from the adhesive.

    • Peel the gray tape from the top of the battery.

  7. 5TGHuH33ndlgESNH

    • Gently pull the front camera connection out of its socket.

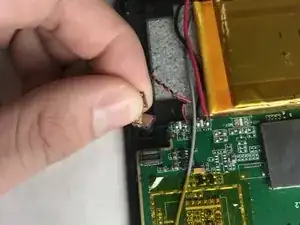

  8. H2svk6Y1ToYoNL1k

    • Lift the camera unit from its housing. The unit should come out with minimal force.

Abschluss

To reassemble your device, follow these instructions in reverse order.
