Einleitung
After a few months blending smoothies, the Impuls blender stopped working. We knew this might be the end of this cheap blender and tend to buy a new one. However fixing the blender is even cheaper than buying a new one and makes you feel good. That is why we started opening the blender and get to the inside to be able to use it again.
Werkzeuge
Ersatzteile
-
-

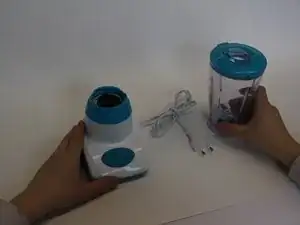

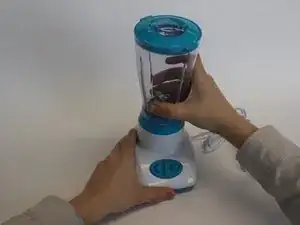

Here you see the Impuls blender
-
First, seperate the the blender jar from the bottom part by turning it and put it aside.
-
-
-

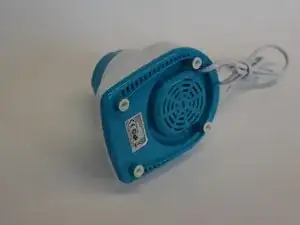

Turn the bottom part over and look at the bottom.
-

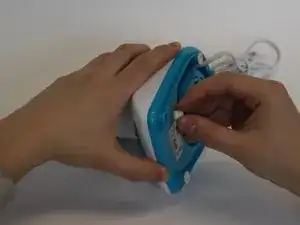

Take the rubber parts out of the 4 holes to reveal the screws.
-

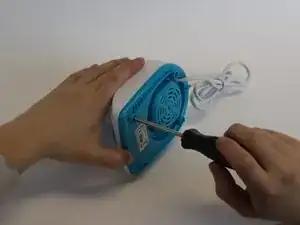

Take the 4 screws out using a Phillips screwdriver.
-
-
-

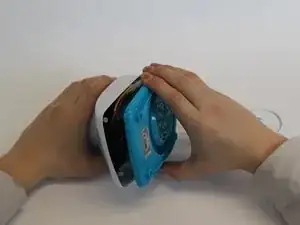

Take the blue bottom part off the rest of the product to reveal the inside.
-

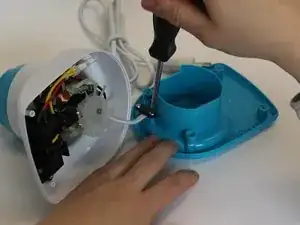

Unscrew the black piece to be able to slide the blue part away from the rest.
-
-
-

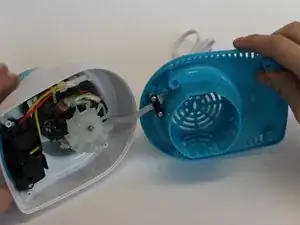

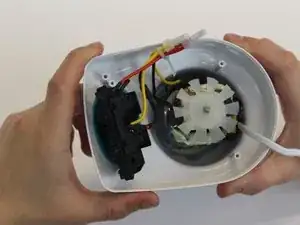

When you look to the inside, you see that there are two components; the buttons and the motor.
-

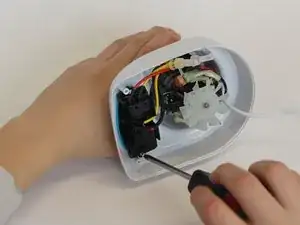

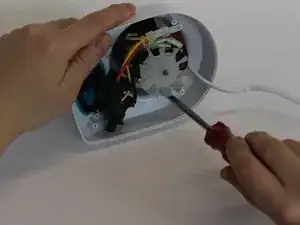

Unscrew the part that contains the buttons and take it off.
-
-
-
Take out the 3 screws that are deep inside.
-

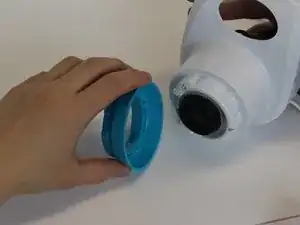

Take off the blue part on top that was fixed with those screws.
-

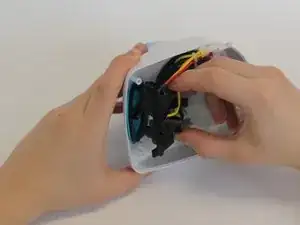

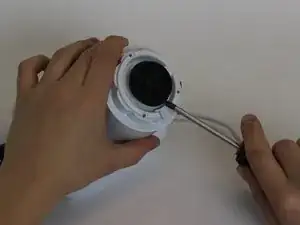

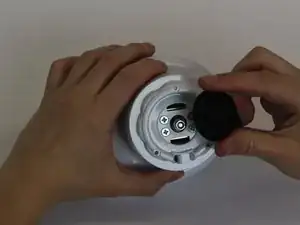

Pull the black disc out by using the screwdriver as lever from multiple sides.
-
-
-

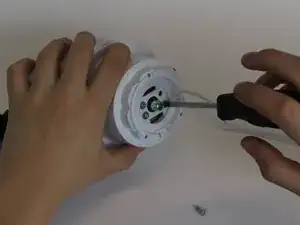

When you have taken off the black piece and revealed the 4 screws, unscrew them all.
-

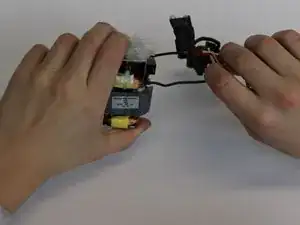

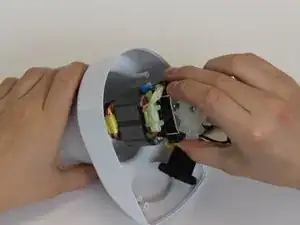

Take out the motor part and the rest of the electronics.
-
-
-
Find the fraction in the wire.
-

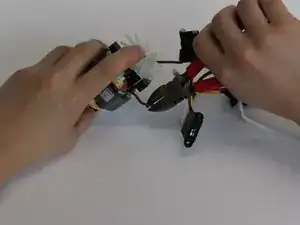

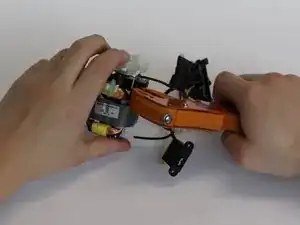

Cut off the broken part
-
Strip both sides of the wire that have to be attached again.
-
-
-
If you will use a shrink sleeve to cover the electronic wire, it has to be put on the wire first. Otherwise if electrical tape is used, this can be done afterwards.
-

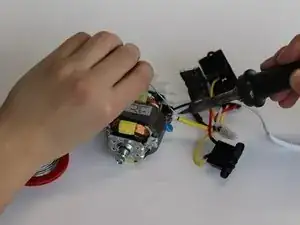

Solder the two wires with a soldering iron.
-

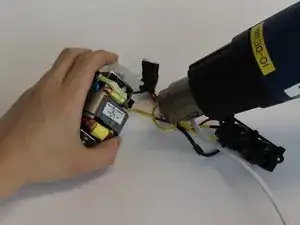

Shrink the sleeve with a heater or put the electrical tape around the soldered wire.
-
To reassemble your device, follow the instructions in reverse order.
