InFocus IN3104 Color Wheel Replacement

Geschrieben von: Christopher Held
  • Kommentare: 3
InFocus IN3104 Color Wheel Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

8 - 15 Minuten

Einleitung

If your InFocus IN3104 has fuzzy or distorted color, this guide is for you. The fuzzy or distorted color most likely means that your color wheel is broken or defective. If your color wheel is broken it will need to be replaced. The color wheel provides color to the projection and is needed for display.

  1. JwBjttrhVgHuDBm3
    JwBjttrhVgHuDBm3
    MvaLJwBJ3KUu4Iaa
    TJlbgyq5qQOZWUbS

    • Turn the projector so that the lens is facing you.

    • On the left side of the projector, there is a screw and a knob inside of the small grate.

    • Use a Phillips #1 screwdriver to remove the 6 mm screw that secures top cover.

    • Remove the service cover.

  2. TpBUDhtWTAbvxFoJ
    TpBUDhtWTAbvxFoJ
    ofTMWVmQJHKdHLSi
    Ni2tfY2OSRTHLMHo

    • Use a Phillips #1 screwdriver to remove the seven 6 mm screws.

    • Use a Phillips #1 screwdriver to remove the two 5 mm screws.

    • Remove the top cover.

    • Do not pull the cover too hard. It may damage the wire that is connected to the motherboard.

  3. KCKaD1yG5sOUGLDf
    KCKaD1yG5sOUGLDf
    IDAKjWr2DWi5Ni6J

    • Use a Phillips #1 screwdriver to remove the nine 6 mm screws.

    • Lift up the metal cover and set it aside to reveal the motherboard.

  4. R1lYQZwgtJEmrLwE
    R1lYQZwgtJEmrLwE
    LmESM3psLQKaUTXf
    msfZ3AAveDh3qB4x

    • Carefully pry up the black plastic locking bar of the ZIF connector on the motherboard with a plastic spudger.

    • Pull out the blue-tipped, white ribbon cable from the connector.

    • Remove the metal cover.

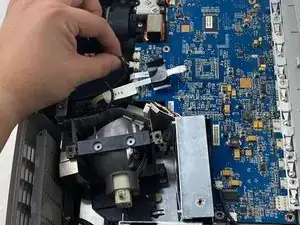

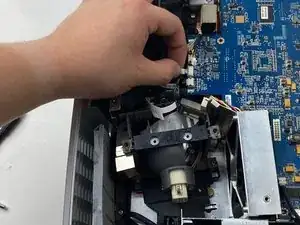

  5. ppKYPbUbkFSmSHNg
    ppKYPbUbkFSmSHNg
    KFuFQNEXBPFyeOPJ
    5Za1ufFpYXUK3HiY

    • Unplug two cables from the edge of the motherboard labeled 80.87 MO and KYO.

    Which wires? What do they do? How should I remove them? Second and third from what?

    Alex Watkins -

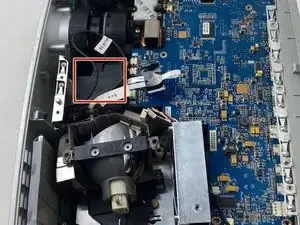

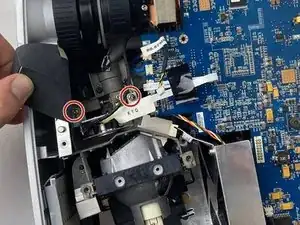

  6. KHHocTG2WeTSwpk6
    KHHocTG2WeTSwpk6
    kHyAcP2cTUYSOQSN

    • Carefully lift up the black paper cover. Do not completely remove it from the device.

    • Lift the paper cover up to reveal two 6mm screws.

    The information bullet here doesn’t seem necessary. Do you have a picture of you removing the cover?

    Alex Watkins -

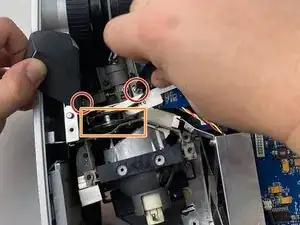

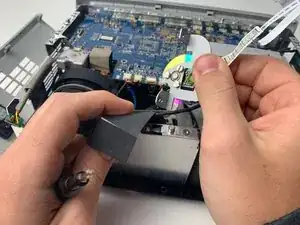

  7. 4xcorD2wAHoXFkME
    4xcorD2wAHoXFkME
    g3ToVP2SdtJqf4R3

    • Use a Phillips #1 screwdriver to remove the two 6mm screws.

    • Remove the color wheel from the device by lifting it out of the projector.

    Make sure to add a step of you removing the wheel.

    Alex Watkins -

Abschluss

To reassemble your device, follow these instructions in reverse order.
