InFocus IN3114 Fans Replacement

Geschrieben von: Isaac Sherman
  • Kommentare: 0
InFocus IN3114 Fans Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

30 Minuten

Einleitung

Use this guide to remove the fans on the left side (from the front) of the InFocus IN3114 projector.

Fans are used to keep devices cool. As computer parts are used, they emit heat. Keeping fans clean, unobstructed, and operable are critical to maintaining a device long-term.

Fans may be broken, obstructed, stuck, or unplugged. More often than not, removing the fans, cleaning them, and replacing the fans is sufficient restoration.

  1. LLYAfGYZVAW6JY46
    LLYAfGYZVAW6JY46
    6NjhCxLnpo1a1sJN

    • Use a Phillips #1 screwdriver to remove the 1.2 cm Phillips-head screw from each side of the projector.

  2. 2WirUASoTBtqodg1
    2WirUASoTBtqodg1
    RsqIQtPrXQH6JUja
    pgTVt6GQ4TuYMSAQ

    • Use your hands to slide the top plate off of the projector.

    • Lift and remove the plate.

  3. MlTAFWTMuOngl6aU

    • Use a Phillips #1 screwdriver to unscrew the two 9 mm screws on the top of the lamp housing unit.

    • Screws will not come all the way out. It is best to just loosen them as much as possible.

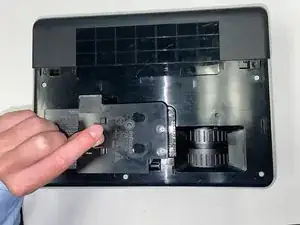

  4. Fh51J4WM3BtrOeei

    • Use your hands to pull up on the silver handle and remove the lamp housing unit.

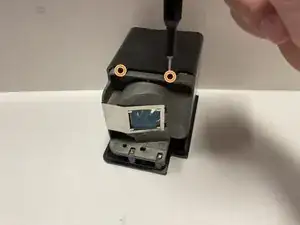

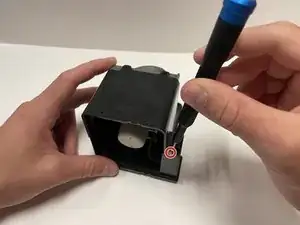

  5. 1XJNQqEq2RW1aWfM
    1XJNQqEq2RW1aWfM
    jVrXSJf2ljVD6nWS

    • Once the lamp housing is removed flip it over where silver pull tab is face down.

    • Use a Phillips #00 screwdriver to remove the 5 mm screw from the right side of the lamp housing unit.

    • Use a Phillips #00 screwdriver to remove the two 5 mm screws from the top of the unit.

  6. AYOWqNpfESdGjOm6

    • Use hands to pull off the black unit cover.

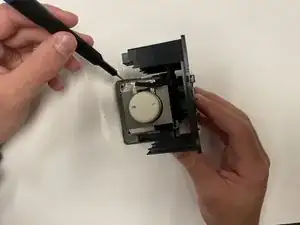

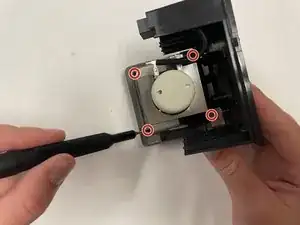

  7. EWkEqDlLEH62JBX2
    EWkEqDlLEH62JBX2
    2FTKLoQsFDiOeTWQ

    • Once the cover is removed, flip the housing unit so the bulb is face down.

    • Remove the four 4 mm screws with a Phillips #00 screwdriver.

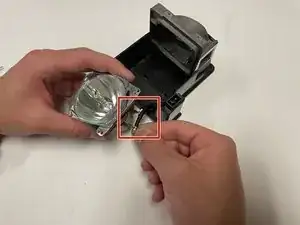

  8. ZM2xTwUsnQrwiAOn
    ZM2xTwUsnQrwiAOn
    Vn3ALhdBobF2JDry

    • Use hands to pull out the bulb and silver cover.

    • Gently pull on the two wires that connect the bulb to its housing to disconnect them.

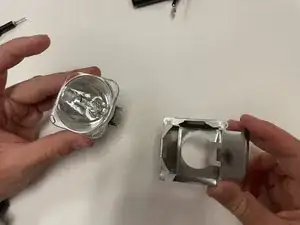

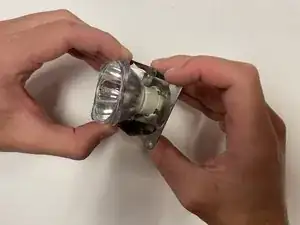

  9. 4u5CxSEoprOOUQTy
    4u5CxSEoprOOUQTy
    r5owEWSyGxMuCi5C

    • Once wires are disconnected, Remove the bulb from the silver cover and replace.

  10. rfwcoGbdjRUBkILY

    • Use a Phillips #1 screwdriver to loosen and remove the five 7 mm screws that secure the frame.

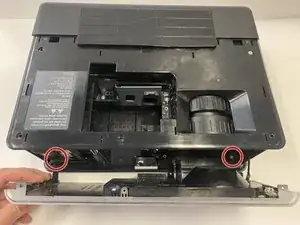

  11. EP3hPauxPgkwKJWy

    • Pull back the top of the front face slightly.

    • Use a Phillips #1 screwdriver to remove the two 7 mm screws, and lift upwards.

    • These screws are held in tightly. In order to prevent stripping, be sure to apply ample downward pressure to the screwdriver when unscrewing the screws.

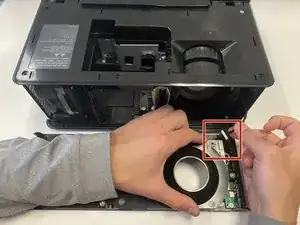

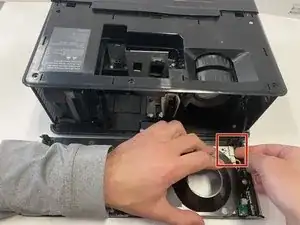

  12. CZiPVGHIjlSWPOWX
    CZiPVGHIjlSWPOWX
    bOJNtSPgIIHHJcaQ

    • Use hands to unplug wiring connecting the front face to the main projector.

    • Wiring should pull out with moderate force.

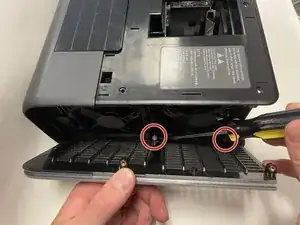

  13. DIHvyc2LOjdhtOpW

    • Carefully pull the left vent back, and use a Phillips #1 screwdriver to remove the screws that secure it in place.

    • These screws are held in tightly. In order to prevent stripping, be sure to apply ample downward pressure.

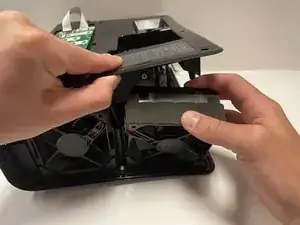

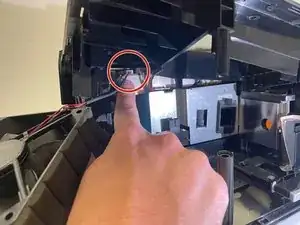

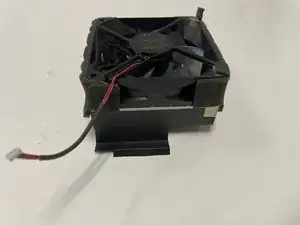

  14. fNXR3WlYHTfHFPCb
    fNXR3WlYHTfHFPCb
    OnjGYrgjrYdwrXpf
    UMYUU5qqEArWy1nV

    • Carefully remove each fan, and use your hands to gently unplug their connectors from the circuit board.

    • The wires should unplug easily with a moderate tug.

Abschluss

To reassemble your device, follow these instructions in reverse order.
