InFocus IN3114 LED Touch Board Replacement

Geschrieben von: Kevin Li
  • Kommentare: 0
InFocus IN3114 LED Touch Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

30 - 50 Minuten

Einleitung

  1. LLYAfGYZVAW6JY46
    LLYAfGYZVAW6JY46
    6NjhCxLnpo1a1sJN

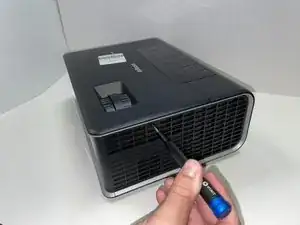

    • Use a Phillips #1 screwdriver to remove the 1.2 cm Phillips-head screw from each side of the projector.

  2. 2WirUASoTBtqodg1
    2WirUASoTBtqodg1
    RsqIQtPrXQH6JUja
    pgTVt6GQ4TuYMSAQ

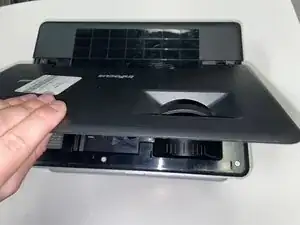

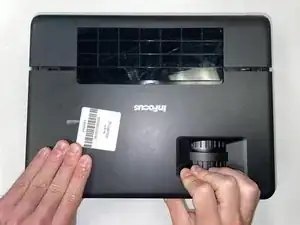

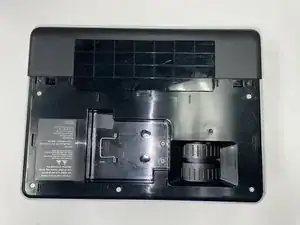

    • Use your hands to slide the top plate off of the projector.

    • Lift and remove the plate.

  3. Aj3nC6SQIehRHwLJ
    Aj3nC6SQIehRHwLJ
    bfwMXltMNVOVXtMs
    2DB5EfCZFHPYXcit

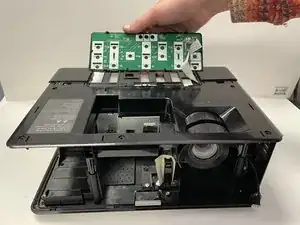

    • Use the opening tool to slide off the control panel cover.

    • Use a heat gun as necessary

    • Remove the cover.

  4. LJUJeSesrFA2FwcF
    LJUJeSesrFA2FwcF
    E4HwConRIsO1pLcB
    ApknYaHGUZhgugnd

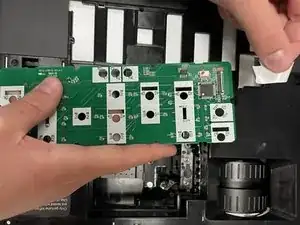

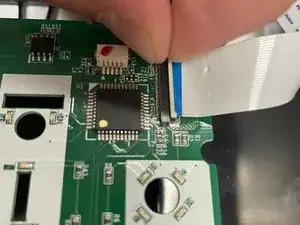

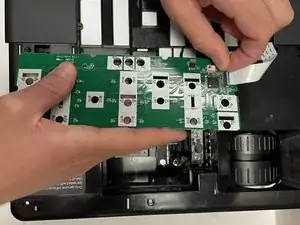

    • Unplug the ribbon cable from the edge of the LED touch board.

    • Remove the LED touch board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
