InFocus IN35W Lamp Replacement

Geschrieben von: Grace Hubert
  • Kommentare: 0
InFocus IN35W Lamp Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

The projector lamp is the most essential part of your InFocus IN35W projector because it creates the light that shines through the DLP or LCD system and makes clear, bright, vivid images your projector displays. The lamp could be the reason why your picture isn’t coming out as clear anymore. Follow these steps to learn how to access the lamp and how to replace it if needed.

  1. qUNObTrv1Uv2IKLM
    qUNObTrv1Uv2IKLM
    VAEJNCWRTlCDfa6f

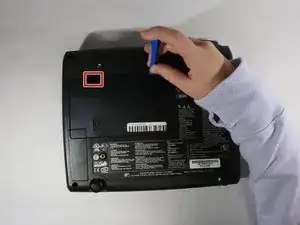

    • Flip the projector on its backside and lay it on a flat surface.

    • Remove the lamp door gently with your hands or a plastic opening tool.

  2. IWer36aqusUwyM2G
    IWer36aqusUwyM2G
    npdISCw5BftdsdqN

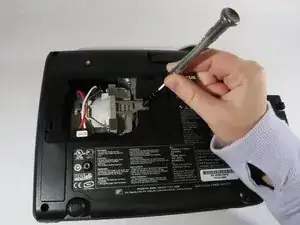

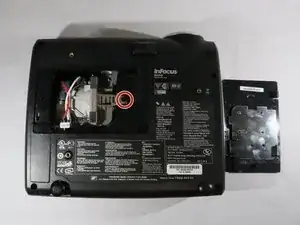

    • Loosen the slotted screw with a flathead screwdriver (3.0).

  3. 1bLPnyZC5lueagtt
    1bLPnyZC5lueagtt
    Mi6BARUE1ZOIZU5F

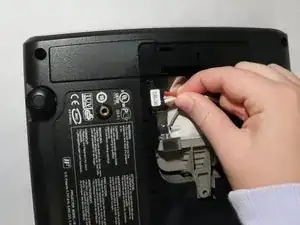

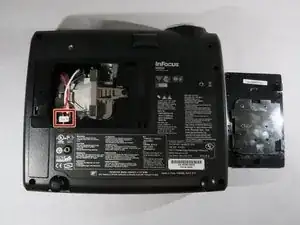

    • Disconnect the lamp connector wire from the projector body.

    • This part takes some force, but try to pull as carefully as possible to avoid breakage.

  4. ElEsBtLOPiWNT4pc

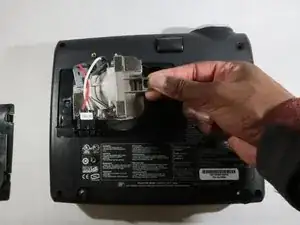

    • Carefully remove the lamp from its socket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
