InFocus Remote Button Pad Replacement

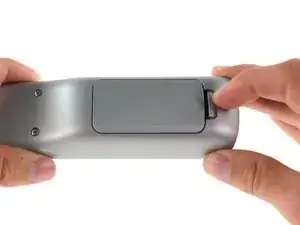

Use your finger to press the tab on the battery cover.

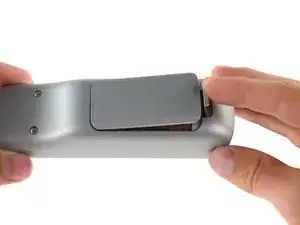

Lift the cover up and out.

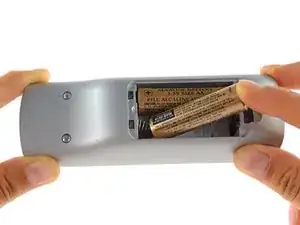

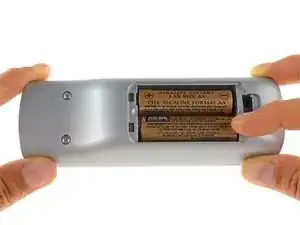

Use your finger to lift the two AA batteries up and out of the remote.

Remove the three 9mm Phillips #00 screws located on the backside of the remote.

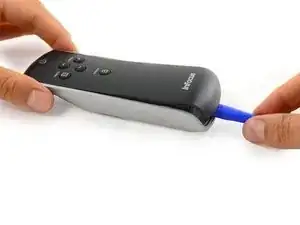

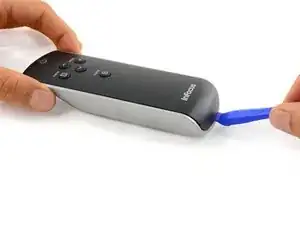

Insert a plastic opening tool into the seam between the black top cover and silver base at the bottom edge of the remote.

Carefully pry the top cover up and away from the base.

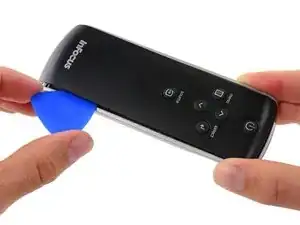

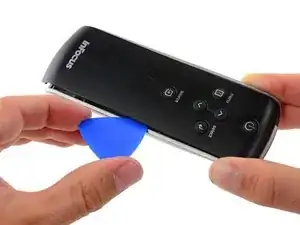

Insert an opening pick into the seam on side of the remote, even with the InFocus Label.

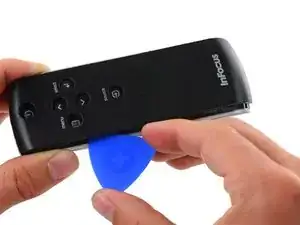

Slide the opening pick along the side of the remote, moving towards the buttons.

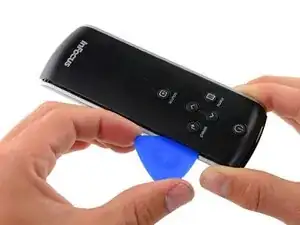

Repeat the previous step on the other side of the remote, working from the InFocus label towards the buttons until the entire cover is loose.

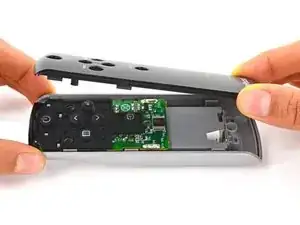

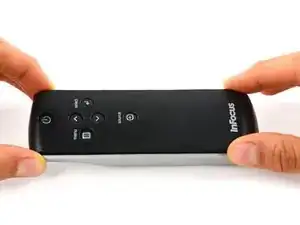

Firmly grasp the cover and lift it away from the remote.

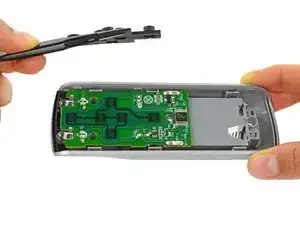

Lift the button pad up and out of the remote.
