InFocus Remote Motherboard Replacement

Geschrieben von: Paige Reisman
  • Kommentare: 0
InFocus Remote Motherboard Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

Keine Schätzung

Einleitung

Use this guide to remove and fix and/or replace the Motherboard on your InFocus Remote.

  1. GcFLqixYTISMkjPI
    GcFLqixYTISMkjPI
    L2hGMQikBgPYvWYA

    • Use your finger to press the tab on the battery cover.

    • Lift the cover up and out.

  2. tnEAMwLUfNcKlaaw
    tnEAMwLUfNcKlaaw
    JHxSHYSIOh3lnW6X

    • Use your finger to lift the two AA batteries up and out of the remote.

  3. nshCCFdBSLFKnpUC

    • Remove the three 9mm Phillips #00 screws located on the backside of the remote.

  4. GABKQTDVIK3QoqrM
    GABKQTDVIK3QoqrM
    rMtd6UyAK2tx424X

    • Insert a plastic opening tool into the seam between the black top cover and silver base at the bottom edge of the remote.

    • Carefully pry the top cover up and away from the base.

  5. APAWBZ46xeoAsLE2
    APAWBZ46xeoAsLE2
    6YYIX4Yx3ZWDTPAP
    teswZvJxxTyVvlaC

    • Insert an opening pick into the seam on side of the remote, even with the InFocus Label.

    • Slide the opening pick along the side of the remote, moving towards the buttons.

    • There is a plastic tab that holds the covers to the base, located even with the Source button. Push the pick through with a bit more force here to disconnect the cover.

  6. 1fW1WihNMThmSebW
    1fW1WihNMThmSebW
    lDj3BiynJO2CtjH1
    XqemmsdLm1bUhKNJ

    • Repeat the previous step on the other side of the remote, working from the InFocus label towards the buttons until the entire cover is loose.

  7. iD3gUW4Td4CIceqd
    iD3gUW4Td4CIceqd
    uDWrNfUHEGXueFPo

    • Firmly grasp the cover and lift it away from the remote.

  8. NKeJiB1a5jFpDEtG
    NKeJiB1a5jFpDEtG
    td1T5qC3BuGYasSQ

    • Lift the button pad up and out of the remote.

  9. AVWv62fIkXWrjFcN
    AVWv62fIkXWrjFcN
    OiMaygRp3GlyvyUZ

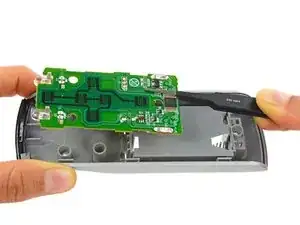

    • Lift the motherboard up and out of the silver base.

    • There are two springs attached to the bottom of the motherboard that can get stuck in the base. Wiggle the board as you pull it up and out to release it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
