Einleitung
This guide shows how to replace the projector's bulb if you are experiencing no image being betrayed by the projector. You will need a replacement bulb and an iFixit tool kit.
Ersatzteile
-
-

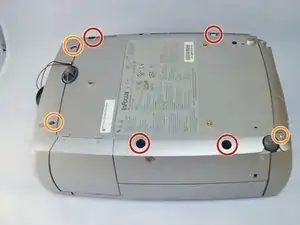

Flip the projector on its back.
-

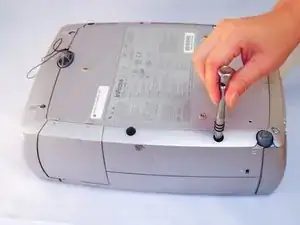

Use the Phillips #2 screwdriver to remove the (4) four 2 cm gold screws.
-
Use the Phillips #2 screwdriver to remove the (3) three 1 cm silver screws.
-
-
-
Turn the projector, facing the back cable board towards you.
-

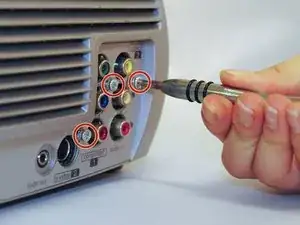

Using the Phillips #0 screwdriver, remove the (3) three 1.0 cm silver screws on the back panel.
-
Gently take off back cable panel.
-
-
-
Turn the projector so the front side with the lens is facing you.
-

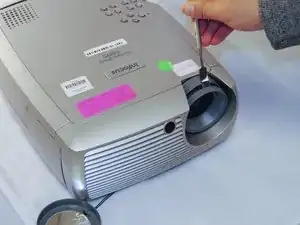

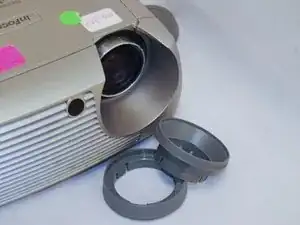

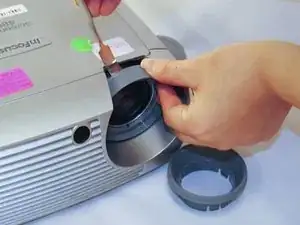

Gently pry the both of the grey lens rings using the metal spudger.
-
-
-
Now that the screws have been removed, proceed with the removal of the outer panel.
-

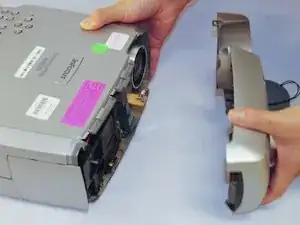

Gently remove the front lens panel.
-
-
-

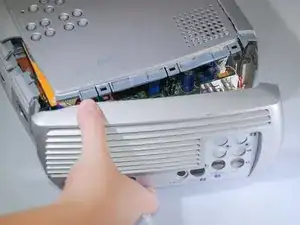

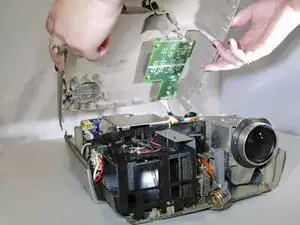

Being careful not to pull the wires inside the projector, gently lift the top panel off the projector.
-
-
-

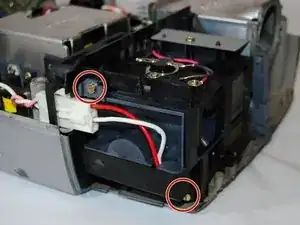

Remove the two gold 1 cm screws and washers on the side of lens housing using the 4.0 flat-head bit
-

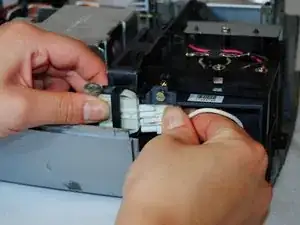

Pinch the white wire tab to gently detach the side that connects with the lens housing.
-
-
-

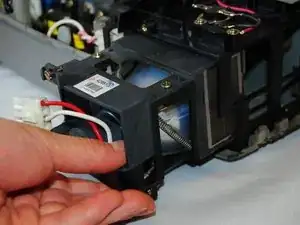

Slide the bulb housing out of the projector.
-

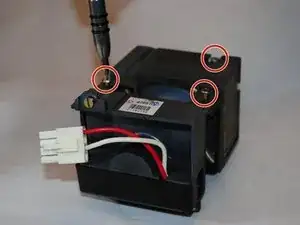

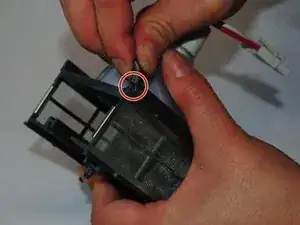

Use the Phillips #1 screwdriver to remove the three 1 cm gold screws on the bulb housing.
-
-
-

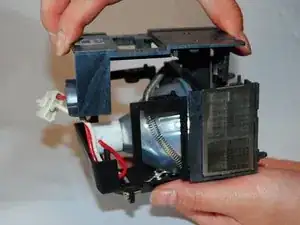

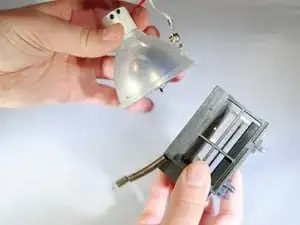

Gently pull the top of the bulb housing off.
-

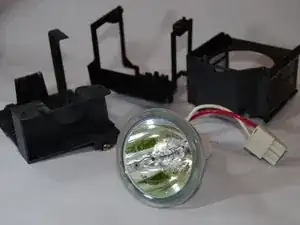

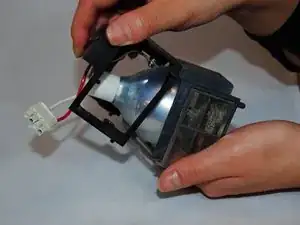

Lift up the middle of the bulb housing to remove it.
-
To reassemble the device, follow these instructions in reverse order.
3 Kommentare
To remove and later disassemble the lamp, you don’t need to remove whole cover. Just open the lamp bay door and follow the steps starting from 6!
madyogi -
madyogi, exactly. You are absolutely right!
I was able to fix an old projector I got for $40. Thank you so much for the tutorial.
