Einleitung
Replace the built-in 2.5 watt mono speaker if you are experiencing sound problems.
For this project you will need a torx screwdriver and metal spudger. You may need a can of compressed air to clean the inside of the projector.
-
-
Flip the projector on its back.
-
Use the Phillips #2 screwdriver to remove the (4) four 2 cm gold screws.
-
Use the Phillips #2 screwdriver to remove the (3) three 1 cm silver screws.
-
-
-
Turn the projector, facing the back cable board towards you.
-
Using the Phillips #0 screwdriver, remove the (3) three 1.0 cm silver screws on the back panel.
-
Gently take off back cable panel.
-
-
-
Turn the projector so the front side with the lens is facing you.
-
Gently pry the both of the grey lens rings using the metal spudger.
-
-
-
Now that the screws have been removed, proceed with the removal of the outer panel.
-
Gently remove the front lens panel.
-
-
-
Being careful not to pull the wires inside the projector, gently lift the top panel off the projector.
-
-
-

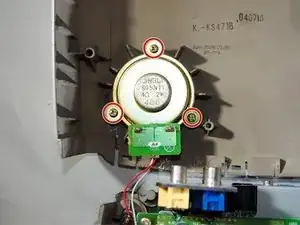

Locate the circle speaker on the lower left corner of the inside of the lid.
-
Use the Phillips #1 screwdriver to remove the three gold 2cm gold screws.
-

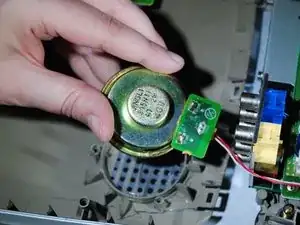

Remove the speaker from the lid and flip metallic side down.
-
-
-

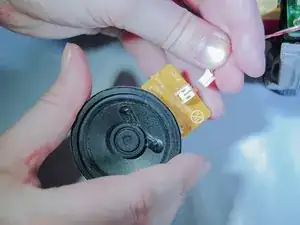

Gently pull the white connector to release the speaker.
-

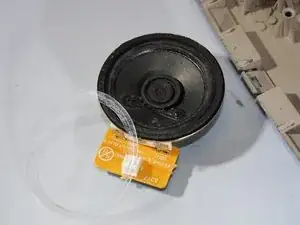

Lift the speaker out of its holding.
-
To reassemble your device, follow these instructions in reverse order.
