Replace the motherboard if experiencing sound and power problems.
For this project you may need a can of compressed air to clean the insides of the projector. You may also want safety goggles.
Werkzeuge
Ersatzteile
-
-
Flip the projector on its back.
-
Use the Phillips #2 screwdriver to remove the (4) four 2 cm gold screws.
-
Use the Phillips #2 screwdriver to remove the (3) three 1 cm silver screws.
-
-
-
Turn the projector, facing the back cable board towards you.
-
Using the Phillips #0 screwdriver, remove the (3) three 1.0 cm silver screws on the back panel.
-
Gently take off back cable panel.
-
-
-
Turn the projector so the front side with the lens is facing you.
-
Gently pry the both of the grey lens rings using the metal spudger.
-
-
-
Now that the screws have been removed, proceed with the removal of the outer panel.
-
Gently remove the front lens panel.
-
-
-
Being careful not to pull the wires inside the projector, gently lift the top panel off the projector.
-
-
-

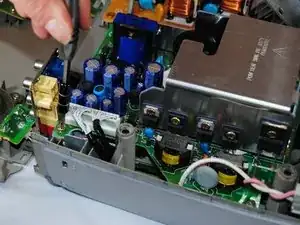

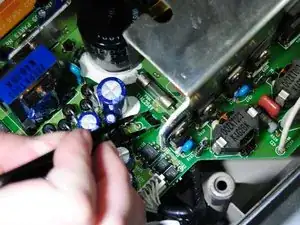

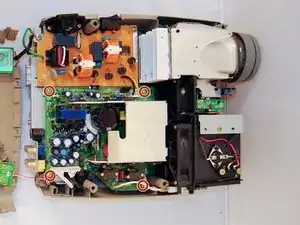

Using the Phillips #1 screwdriver, remove the (4) four 1.5 cm screws on each of the four corners of the motherboard cover.
-

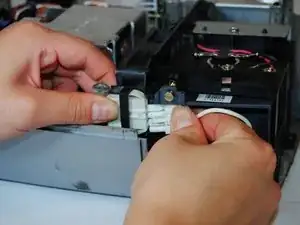

Remove the white tab connected to the light bulb.
-
-
-

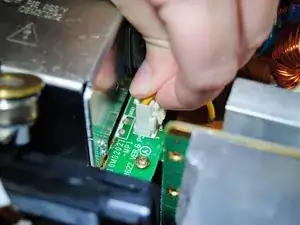

Gently pull the white tab on the right side of the silver power housing by pinching each side of it.
-
Pinch the two black tabs on the inside of the cover to remove.
-

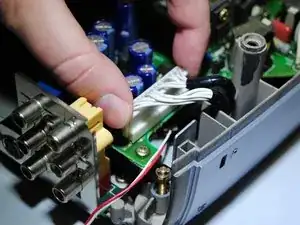

Gently pull on the long white tab to remove it.
-
To reassemble your device, follow these instructions in reverse order.
