InFocus X2 Lamp Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

4 Minuten

Einleitung

The InFocus X2 projector’s lamp can become burned out, resulting in a picture that is blacked out on one side. This guide will describe how to access the lamp and replace the burned-out part with a new one.

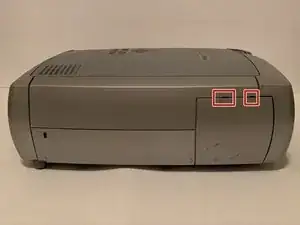

  1. 4k4c4mTDmnSOiwT5
    4k4c4mTDmnSOiwT5
    vWyKCMhGAUqwJr4j
    AgfQrgxDUXOMUqje

    • Be sure that the projector is turned off, unplugged, and has cooled for at least 30 seconds.

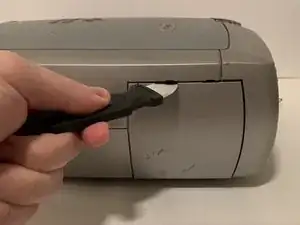

    • Insert the Jimmy into one of the two notches on the lamp door's top edge.

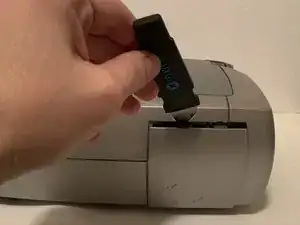

    • Then use light force on the Jimmy to pry the latch away from the door.

    • If necessary, insert the Jimmy into the second latch and separate it from the projector.

    • Remove the door away from the projector by hand.

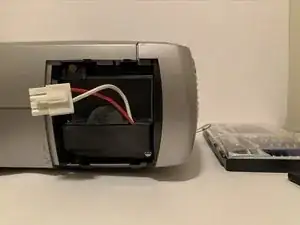

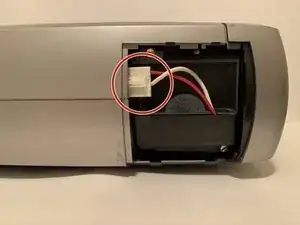

  2. MEQTHLGN3p5SCJ2W
    MEQTHLGN3p5SCJ2W
    NCUASiU4fkFFBl2H
    53QbEpxl4hXU1GoD

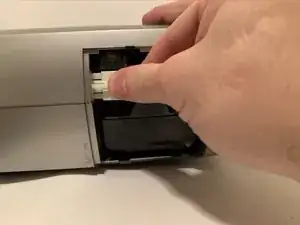

    • Gently disconnect the lamp from the projector by using your thumb and forefinger to pinch on the white tab on the plug.

    • Then pull the plug away from the projector.

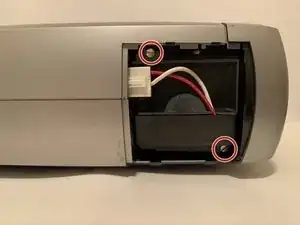

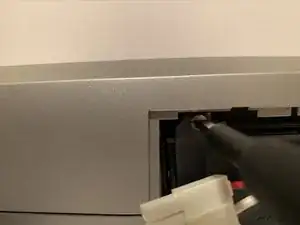

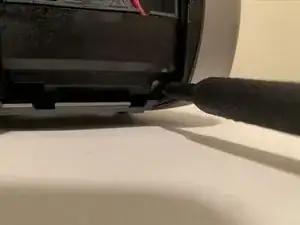

  3. GyRZ6LVHDeGDGHVO
    GyRZ6LVHDeGDGHVO
    NKJQYTVIvMJmQQWl
    RQC6bgkEU1yAA5cY

    • Use a Phillips #4 screwdriver or driver with the Phillips #4 head to unscrew the two 0.6 mm diameter brass screws from the lamp's housing.

    • For the lower screw, ensure it remains in the hole in the lamp assembly and it does not fall into the projector. If it falls in the projector, use a magnetized screw bit or a small magnet to pick it up and remove it.

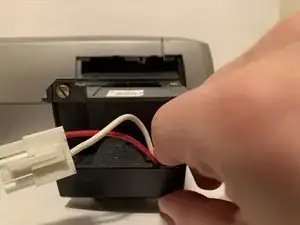

  4. 6OrMbAbiKigjcPV4

    • Pull on the bottom plastic tab and remove the lamp by hand.

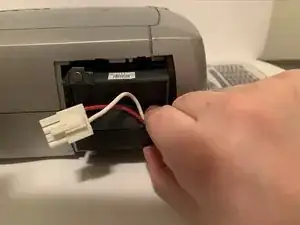

  5. 3qPBeE2r3fAojfn6

    • Insert the replacement lamp into the projector.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Caution: The old bulb contains mercury. Please recycle it in a safe and appropriate manner. Look for your local recycling information at https://earth911.com/
