India Mark II Access Door Replacement

Geschrieben von: Andrew Optimus Goldheart
  • Kommentare: 0
India Mark II Access Door Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

Keine Schätzung

Einleitung

Follow this guide to remove the access door of an India Mark II for repair or replacement.

  1. knxaBegnqXhMVOJP
    knxaBegnqXhMVOJP
    6FLXjZRrK3VCdh52

    • Before performing any repairs, perform a water test on the pump by raising and lowering the handle a full 40 strokes. A properly performing pump will yield greater than 10 liters.

    • Remove the hex head bolt from the top of the access door on the pump head.

    • On reassembly, this bolt should be hand-tight.

  2. kc2lU4ebqKFBw1qN
    kc2lU4ebqKFBw1qN
    RnQHnIhOOpsDGOxf
    xOfQglAwmagVWqOA

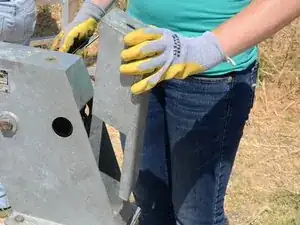

    • Pull the access door straight up off the pump head.

    • Store the access door in a sanitary place to prevent contamination.

  3. JoFFylEdtWmtoaVd
    JoFFylEdtWmtoaVd
    EWeXySTTDWTlrIdC

    • The access door has a tongue that fits into the base of the pump head.

    • The access door makes a convenient tray to hold nuts and bolts during the disassembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
