Einleitung

  1. MgxVWPXfqU4pXZaR
    MgxVWPXfqU4pXZaR
    5Ih1NWGxfEAA2PgR
    • Position the camera with bottom facing toward you.

    • Using the plastic opening tool, remove all four rubber ends from the bottom of the camera.

  2. iEiRl2PQhM2IKKEK
    iEiRl2PQhM2IKKEK
    TGaBPOtTYGcEupij
    • Remove the four 4 mm screws beneath rubber ends using the Phillips #00 screwdriver.

  3. wR3D3tPCHiTXJnxR
    • Open the bottom of the camera to reveal the circuit board and speaker.

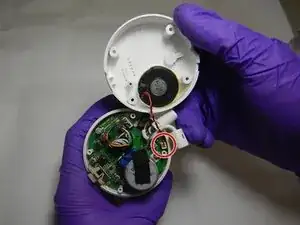

  4. 4HJIUAjOeXZ1ufWB
    • Disconnect the speaker cable from the circuit board for ease of access.

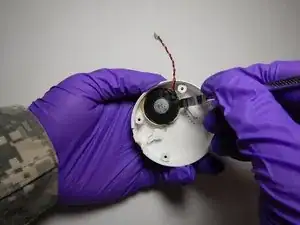

  5. 4JcAnDpatHMnheEu
    • Lift the speaker from the casing using a metal spudger.

    • Place a new 8W speaker in the casing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
