Infant Optics DXR-8 Power Button Replacement

Geschrieben von: Thomas
  • Kommentare: 4
Infant Optics DXR-8 Power Button Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

  1. GOcvjwfgMcdXpsse
    GOcvjwfgMcdXpsse
    ZsNhD23SUDoHGrU5
    jT1ghDUBpspqWsjW

    • Using the plastic opening tool, remove screen protector from front of monitor.

    There's a layer of adhesive between the screen protector and the white plastic behind it.

    Jared Astillero -

    The cover is glued on. So you’ll nee d quite a bit of force to bend it up. But then it’ll come lose glue point by glue point. At first I was afraid that I’ll break it.

    Marco Smolla -

  2. N5QZknKvCQOlQXcL
    N5QZknKvCQOlQXcL
    GhBMVduKGErGhmVM
    lI14wgJlKmQ6WYFx

    • Remove the six 4mm screws using a Phillips #00 screwdriver.

    • Remove the screen, exposing the circuit board.

    • Turn device over to expose rear circuit board.

  3. eZKvBkxC6t3jITrS
    eZKvBkxC6t3jITrS
    PhVBd2P6MqTojxIG
    dGHmHmoHMHY1YTkv

    • Disconnect speaker from monitor for ease of access by unplugging wire.

    Thank you so much for this - and thank you to the commenter who walked through the additional screen replacement steps! I’ve never done anything like this and I managed to replace the screen myself.

    Lauren Skinner -

  4. fwSIywTtLs4rDsDG

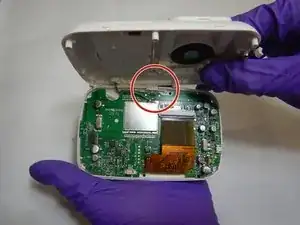

    • The power button is located at the top of the device.

  5. xrZy1RPqOofG2Nqg

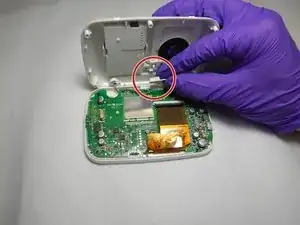

    • Remove the button by picking it up out of the hole it is connected to.

  6. EveFS5feMe4AyTsr

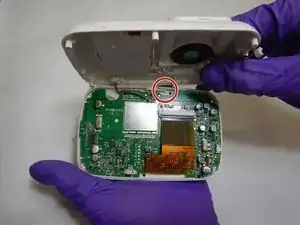

    • Insert a new button by placing the small end in the hole to connect the button to the device.

Abschluss

To reassemble your device, follow the instructions in reverse order.

Tinte & Feder

Thomas

Mitglied seit: 02/10/19

133 Reputation

Ein Kommentar

Where did you get the replacement switch?

Dave Peterson -
