You may have to replace the Infinity v2 10.1 speakers if the device no longer makes sound or the sound is muffled or distorted. When removing the speaker, a soldering iron is required. Make sure to follow all the safety warnings and instructions in this guide and in the instructions of your soldering iron.
Warning: When using this guide, follow all the safety warnings and instructions related to soldering to avoid injury.
-
-
Slightly pry open one corner of the device by using your finger nail to separate the screen from the back case.
-
Use an opening tool to carefully detach the back case from the tablet. Start by inserting the tool where your fingernail opened a gap, and work around all four sides of the device.
-

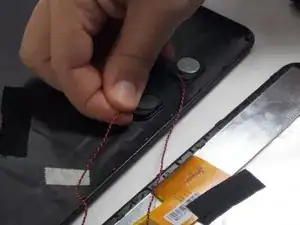

Once the case is completely free, carefully lift it and place it face up on the workstation, being cautious not to damage the speaker wires connecting the two halves.
-
-
-
Turn on your soldering iron and allow it to heat up. Once it is hot, press the tip of the iron to the both of the solder points that attach the wires to the motherboard until the solder is melted.
-
Once the solder is melted, use tweezers to remove the wires from the motherboard.
-
To reassemble your device, follow these instructions in reverse order.
