Insignia Flex 10.1 NS-P10A6100 Screen Replacement

Geschrieben von: Samantha Damewood

Kommentare: 2

Insignia Flex 10.1 NS-P10A6100 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

20 - 30 Minuten

Einleitung

If the screen is cracked, broken, or not responding to touch, you may need to replace it. There are no significant hazards to be aware of, but it's always a good idea to be careful when removing parts of your device as to not damage anything.

Werkzeuge

Schritt 1

Make sure your tablet is turned off and not connected to a power source to prevent personal injury.
The volume rocker and power button located on the top edge by the camera are not connected pieces and will become free from the device once the front panel is removed from the back case. They are easily put back in place when reassembling the tablet.
Position the tablet with the top edge by the camera facing down.

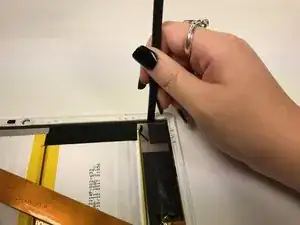

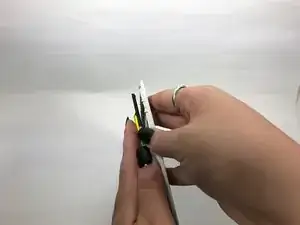

Insert the plastic opening tool between the front panel and back case at the upper left hand corner of the tablet.

Schritt 2

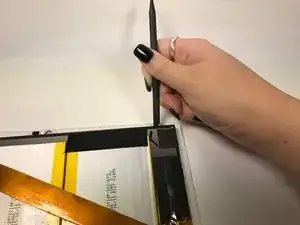

Slide the plastic opening tool along the edge of the tablet between the front panel and back case.
Repeat this process for the two shorter edges of the tablet leaving the top edge by the camera still snapped in place.

Schritt 3

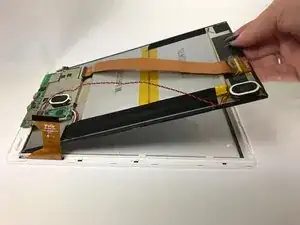

Using an unfolding motion along the top edge of the tablet, carefully separate the front panel from the back case.

Schritt 4

Using the Phillips #000 screw driver, unscrew the two 4 mm screws securing the camera to the front panel in a counterclockwise direction.
The two screws are very small, so be careful not to lose them after unscrewing them.

Schritt 5

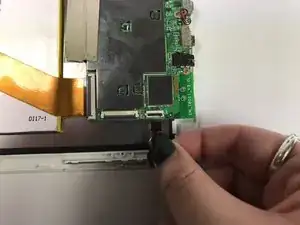

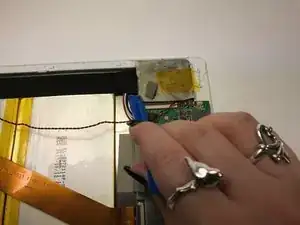

Using the plastic opening tool, lift up the black retaining flap that secures the camera ZIF (zero insertion force) ribbon connector to the motherboard.

Schritt 6

Pull the camera ZIF (zero insertion force) ribbon connector out from underneath the black retaining flap.
Remove the camera.

Schritt 7

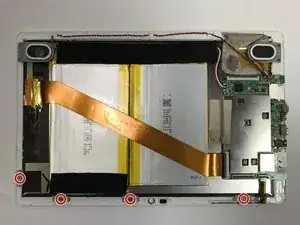

Using the Phillips #000 screw driver, unscrew the four 4 mm screws securing the four gray clasps to the front panel in a counterclockwise direction.
The four screws are very small, so be careful not to lose them after unscrewing them.

Schritt 8

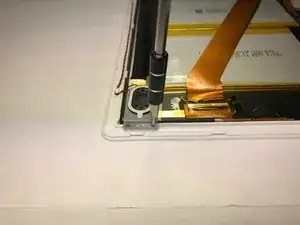

Using the plastic opening tool, pry the four gray clips from the front panel.
The gray clips rest lightly in place on the front panel, so minimal force is required to remove and place them.

Schritt 9

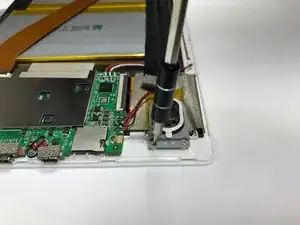

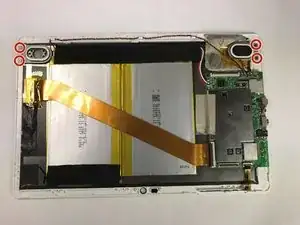

Using the Phillips #000 screw driver, unscrew the four 4 mm screws securing the speakers to the front panel in a counterclockwise direction.
The four screws are very small, so be careful not to lose them after unscrewing them.

Schritt 10

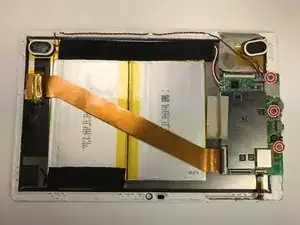

Using the Phillips #000 screw driver, unscrew the three 4 mm screws securing the motherboard to the front panel in a counterclockwise direction.
The three screws are very small, so be careful not to lose them after unscrewing them.

Schritt 11

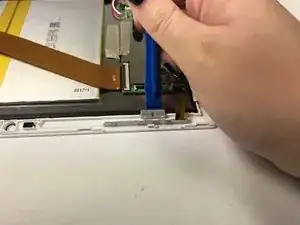

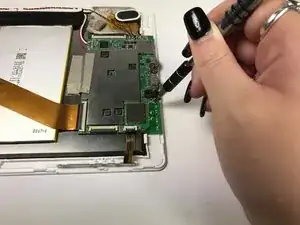

Using the plastic opening tool, lift up the black retaining flap that secures the volume and power button ZIF (zero insertion force) ribbon connector to the motherboard.

Schritt 12

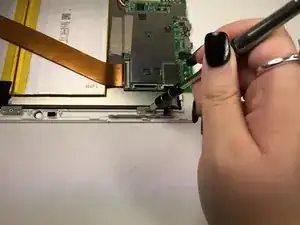

Pull the ZIF (zero insertion force) ribbon connector out from underneath the black retaining flap.

Schritt 13

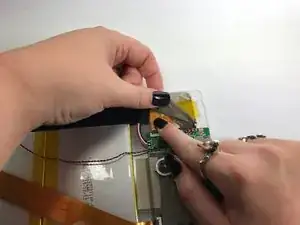

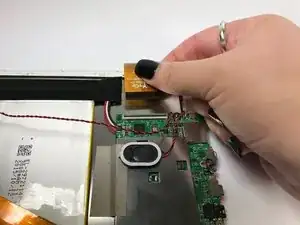

Using the plastic opening tool, remove the silver tape covering the display ZIF (zero insertion force) ribbon connector.

Schritt 14

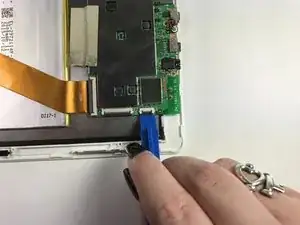

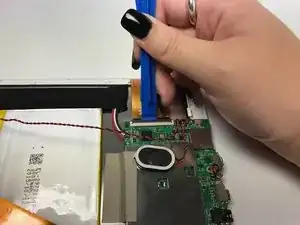

Using the plastic opening tool, lift up the black retaining flap that secures the display ZIF (zero insertion force) ribbon connector to the motherboard.
