Insignia Flex 10.1 NS-P10A7100 Battery Replacement

Geschrieben von: Hannah
  • Kommentare: 0
Insignia Flex 10.1 NS-P10A7100 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

15 Minuten

Einleitung

For instructions on how to replace the battery of your Insignia Flex 10.1 NS-P10A7100, follow this guide.

  1. jQOiD36WMDV1OCyH
    jQOiD36WMDV1OCyH
    ZEjpMiUj6loORKDB
    QOslXudKJ1FFClxe

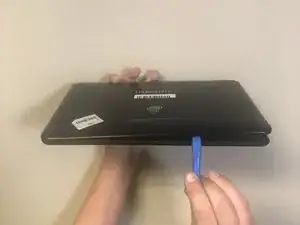

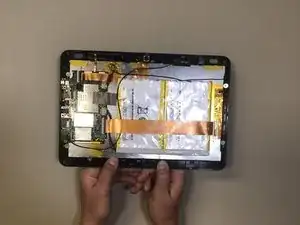

    • Use the blue iFixit opening tool to remove the backing of the device.

    • Wedge the tool in the crease between the device backing and screen.

  2. uHJmWJDCya2MbjqQ
    uHJmWJDCya2MbjqQ
    NaexcPap5D3wVtxZ

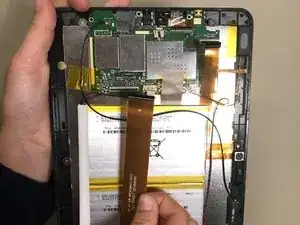

    • Disconnect the larger ribbon that runs along the top of the battery and connects to the motherboard.

    • Lift up the connector by pulling it up with your fingernail. The ribbon will then be released and you can detach it.

  3. MlmsrFSiVwwmHkwX
    MlmsrFSiVwwmHkwX
    PjNvdSVwJdIrXdVf

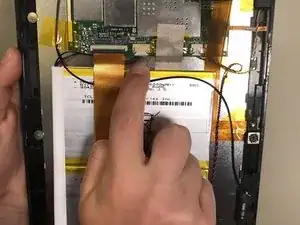

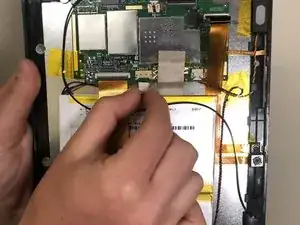

    • Detach the five colored wires that connect the battery to the motherboard.

    • Use two fingers and place one on either side of the white plastic encasing the wires.

    • Pull on this piece to release it from the motherboard.

    • Now the battery is detached from the motherboard.

  4. DQxpDGVIJxnJnaAQ
    DQxpDGVIJxnJnaAQ
    2G6lAYyZQYCGZcKE
    YcjQhnKH4WZSCtNL

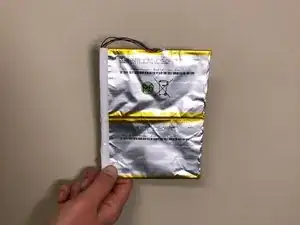

    • The battery is now only connected to the device by the glue on the bottom.

    • Use the iFixit opening tool to wedge the battery off of the device. You will have to use some force to pry the battery off of the device.

    • Now that your battery is removed it is ready for replacement.

Abschluss

To reassemble your device, follow these instructions in reverse order.
