Insignia Flex 8 NS-15AT08 Back Casing Replacement

Geschrieben von: Krystal Rhodes
  • Kommentare: 0
Insignia Flex 8 NS-15AT08 Back Casing Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

10 Minuten

Einleitung

  1. OyiRyxmnPPL3xsd2
    OyiRyxmnPPL3xsd2
    VTtPHmsoWnXdfZOE

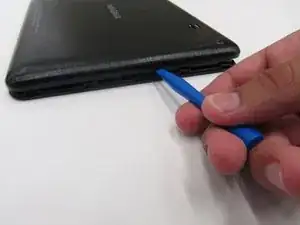

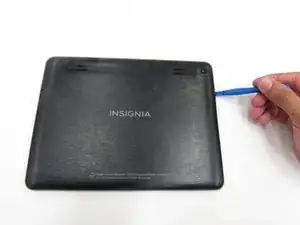

    • Insert a plastic opening tool into the seam between the back casing and the screen to separate the back casing from the tablet.

    • You may need to use a metal opening tool for extra prying power, but beware that it can scratch your device or damage the internal components if the tool is inserted too deep.

    • You will hear the tabs pop as you separate the back casing around the tablet.

  2. 5osOyjkeQhprRJCF
    5osOyjkeQhprRJCF
    YBUtKGqHNPblM5MA

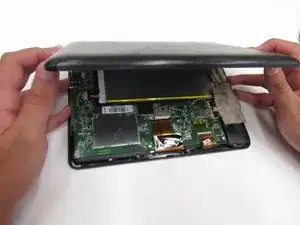

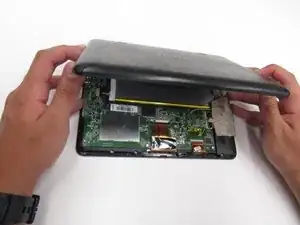

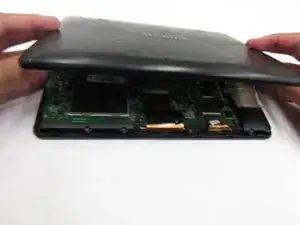

    • Lift the back casing away from the rest of the device which should include the exposed circuit board and screen.

    • Set the casing aside.

Abschluss

To reassemble your device, follow these instructions in reverse order.
