Insignia Flex 8 NS-15AT08 Battery Replacement

Geschrieben von: Jeremy Anaya
  • Kommentare: 0
Insignia Flex 8 NS-15AT08 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

20 Minuten

Einleitung

  1. OyiRyxmnPPL3xsd2
    OyiRyxmnPPL3xsd2
    VTtPHmsoWnXdfZOE

    • Insert a plastic opening tool into the seam between the back casing and the screen to separate the back casing from the tablet.

    • You may need to use a metal opening tool for extra prying power, but beware that it can scratch your device or damage the internal components if the tool is inserted too deep.

    • You will hear the tabs pop as you separate the back casing around the tablet.

  2. 5osOyjkeQhprRJCF
    5osOyjkeQhprRJCF
    YBUtKGqHNPblM5MA

    • Lift the back casing away from the rest of the device which should include the exposed circuit board and screen.

    • Set the casing aside.

  3. G1gNEherEoPTpAqu
    G1gNEherEoPTpAqu
    OrXMhD2DBRIO1mDL

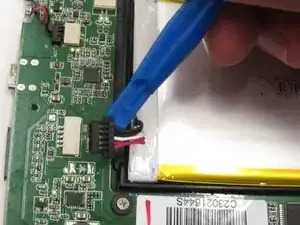

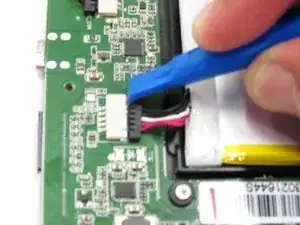

    • Wedge a plastic opening tool in between the male, black module and female, white module to disconnect the wires module from the circuit board.

  4. 4kuynLloi2jIDwtN
    4kuynLloi2jIDwtN
    FTSjkBMs6hdnvtkv
    sK4Qr5OO14jILQKW

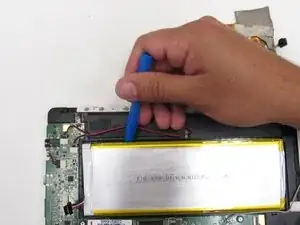

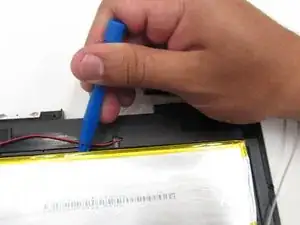

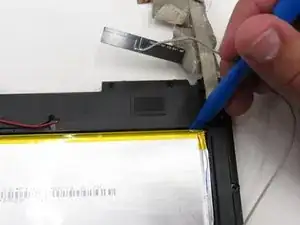

    • Use a plastic opening tool to pry the battery from the circuit board by wedging it around the perimeter of the battery.

  5. 3lGFGGCOXv2VSJP6

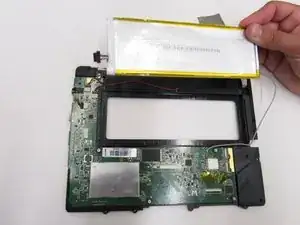

    • Remove the battery from the circuit board by lifting it with the spudger or finger.

Abschluss

To reassemble your device, follow these instructions in reverse order.
