Insignia Flex 8 NS-15AT08 Internal Speakers Replacement

Geschrieben von: Jeremy Anaya
  • Kommentare: 0
Insignia Flex 8 NS-15AT08 Internal Speakers Replacement

Schwierigkeitsgrad

Difficult

Schritte

15

Zeitaufwand

35 Minuten

Einleitung

  1. OyiRyxmnPPL3xsd2
    OyiRyxmnPPL3xsd2
    VTtPHmsoWnXdfZOE

    • Insert a plastic opening tool into the seam between the back casing and the screen to separate the back casing from the tablet.

    • You may need to use a metal opening tool for extra prying power, but beware that it can scratch your device or damage the internal components if the tool is inserted too deep.

    • You will hear the tabs pop as you separate the back casing around the tablet.

  2. 5osOyjkeQhprRJCF
    5osOyjkeQhprRJCF
    YBUtKGqHNPblM5MA

    • Lift the back casing away from the rest of the device which should include the exposed circuit board and screen.

    • Set the casing aside.

  3. KiZsrKSPQWFmyl4g

    • Use a plastic opening tool to flip up the black strip that is holding the orange camera ribbon near the module on the circuit board labeled "front camera" in white print.

    • Repeat this action on the orange camera ribbon near the module on the circuit board labeled "back camera" in white print.

  4. 6sHXiUXNjTBCcPmY
    6sHXiUXNjTBCcPmY
    VpijjxVnEeaxvbLM

    • Use tweezers to gently pull on both orange camera ribbons in the opposite direction in which they are connected until they disconnect from the modules on the circuit board.

  5. RHrq6GHtgIawLTjG
    RHrq6GHtgIawLTjG
    CAiZnrjEptqivQj2

    • Peel the grey tape off of the device in order to separate the cameras and their respective ribbons from the rest of the device.

    • Do not use excessive force while removing the tape to prevent tears in the ribbons.

  6. KgSkS2pa6MFOw1OX

    • Unscrew fifteen (15) 4mm Phillips #00 screws.

  7. cbGqnY4KEJeSjmxE
    cbGqnY4KEJeSjmxE
    AVVqpIYZSyYv3ZjV
    u14DNfnKFGZiFIk2

    • Wedge a plastic opening tool between the black clip and white module on the large, orange display ribbon in the middle of the circuit board.

    • Pull the clip toward you with the plastic opening tool in order to completely disconnect the display ribbon.

    • The black clip holding this ribbon can fly out if enough force is used. Be careful not to lose that black clip.

  8. Oo4SnwNBLO2ITPI5
    Oo4SnwNBLO2ITPI5
    M6ONLXWusSlwDrKj

    • Use a plastic opening tool to flip up the black strip on the white module which is holding the connection between the other display ribbon and the circuit board.

    • Once the black strip has been flipped up, the connection between the module and the ribbon has been unlocked. Use the spudger to pull the ribbon towards you in order to completely disconnect it from the circuit board.

  9. ynjEiFwi12fwKTPr
    ynjEiFwi12fwKTPr
    QoQEbwBcW4GgCnaH

    • Pry out the antenna board with a plastic opening tool which is located right above the black internal speakers.

    • The antenna board is glued to the device, so some force might be needed.

  10. CSur5TVjmmcF1Cw6
    CSur5TVjmmcF1Cw6
    OHLC1JLjftTfPlnn

    • Lift the circuit board from the screen underneath and set it aside.

  11. lxPTuGtr6GBXyhWL
    lxPTuGtr6GBXyhWL
    BvZGCCsJLIETrHro

    • Use a plastic opening tool to pry the LCD display away from the screen.

    • Make sure the display ribbons are not tucked underneath the LCD display when reassembling the screen and LCD display (as shown in the first image of this step).

  12. UERopE6cwWUHeSUH

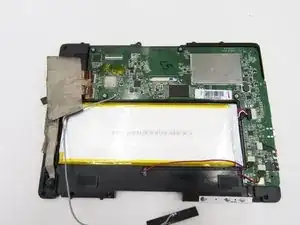

    • Turn the circuit board upside down so that the speakers are closest to you.

  13. mELiZbCkAYHxRpMe
    mELiZbCkAYHxRpMe
    l4vrEOWEIduGDmhR
    vyMRKY4M3fmvkm13

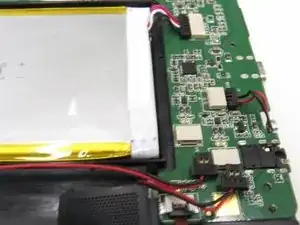

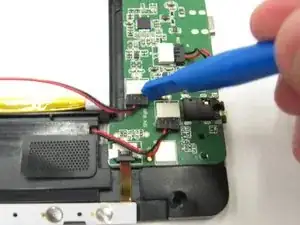

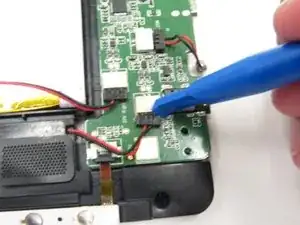

    • Wedge a plastic opening tool between the black and white modules on the circuit board to disconnect the wires of the speakers.

  14. kIOI1oZCUJmlu1j1
    kIOI1oZCUJmlu1j1
    iuGBU3anbXfNoR4G

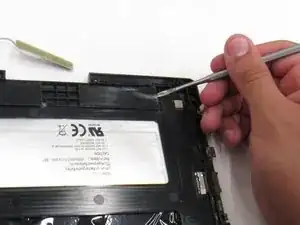

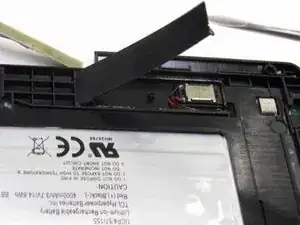

    • On the back side of the circuit board, use a plastic opening tool to pry open the plastic speaker housing.

    • Use a metal opening tool for additional prying power, if needed. Metal opening tools should be used as a last resort, as they may cause further damage to the plastic speaker housing.

  15. acvI6j31XH2dPNKW

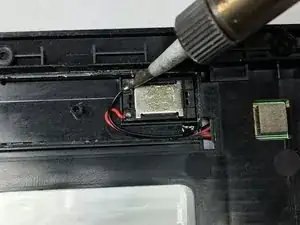

    • Desolder the speaker from its wires in the speaker housing.

    • Repeat this step to remove the other speaker.

    • You can pry the speaker out of the housing before desoldering the wire connections if you wish.

Abschluss

To reassemble your device, follow these instructions in reverse order.
