Insignia Flex 8 NS-P16AT08 Battery Replacement

Geschrieben von: Emily Guidinger
  • Kommentare: 5
Insignia Flex 8 NS-P16AT08 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

20 Minuten

Einleitung

If your battery is dying too quickly or it is faulty, this guide will help you. Use caution, a punctured battery could be extremely hazardous.

  1. PaBdtYc2mwBnVOqN
    PaBdtYc2mwBnVOqN
    qE1EdvJ1IIlmuJVM
    Kxm2LVPXaujYiEbe

    • Make sure device is powered off.

    • Wedge the plastic opening tool anywhere in the seam between the back casing and screen.

    • Slide the plastic opening tool along the sides and corners of the seam of the device while it separates from the screen.

    • You will hear the popping sound of the plastic connections separating from the device.

  2. TRWb5yNCQio25NMR

    • Lift the back casing away from the screen.

    • Set casing aside.

  3. 2GRUMfVY5OSPOEXa

    • Gently peel the tape that is covering the cable connections going to and from the battery and set tape aside.

    • This will expose the cable connections in preparation for disconnecting the cables and battery.

  4. JoW2HLvtIsjh6upH
    JoW2HLvtIsjh6upH
    GfQYRsny2CeKIHWi

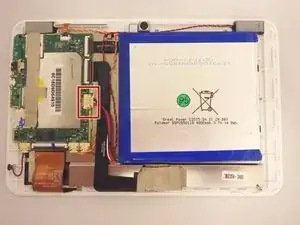

    • Locate battery cable connection.

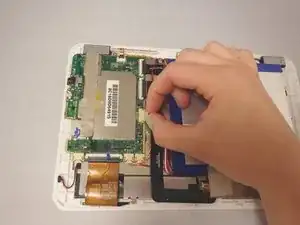

    • Pull gently on cable that connects the battery to the motherboard.

    • Cable will stay attached to battery but be removed from motherboard.

    • If pulling gently doesn't loosen cable, wiggle connection while pulling gently.

  5. X1mRhG3qNQnawTZY

    • Slide the nylon spudger gently underneath the battery.

    • Using the nylon spudger, gently pry battery from adhesive on metal base.

    • Do not puncture or bend battery.

    • Working around the battery, pry up all the sides to remove the battery from the metal base.

    • The adhesive is very strong. Separating the battery from the metal base may be difficult.

Abschluss

To reassemble your device, follow these instructions in reverse order.
