Insignia Flex 8 NS-P16AT08 Speakers Replacement

Geschrieben von: Jose Diaz
  • Kommentare: 0
Insignia Flex 8 NS-P16AT08 Speakers Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

If your tablet speakers are not working or you would like them to work better, follow this guide to replace them.

  1. PaBdtYc2mwBnVOqN
    PaBdtYc2mwBnVOqN
    qE1EdvJ1IIlmuJVM
    Kxm2LVPXaujYiEbe

    • Make sure device is powered off.

    • Wedge the plastic opening tool anywhere in the seam between the back casing and screen.

    • Slide the plastic opening tool along the sides and corners of the seam of the device while it separates from the screen.

    • You will hear the popping sound of the plastic connections separating from the device.

  2. TRWb5yNCQio25NMR

    • Lift the back casing away from the screen.

    • Set casing aside.

  3. sCTyJgcjxTphHQ3T
    sCTyJgcjxTphHQ3T
    exEpyUPbWLeESTt2

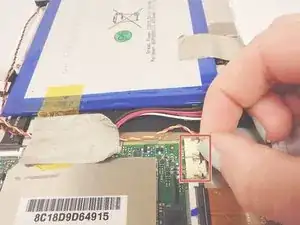

    • There are two connections that attach the speakers to the motherboard.

    • Unplug the cables from the motherboard by gently pulling them away.

    • Speaker cables will be free to be removed.

  4. rmH2MbCNoTrJqUFx
    rmH2MbCNoTrJqUFx
    Y3No52tVCBXQ1sxR

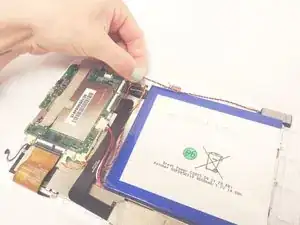

    • Remove the tape that is holding the speaker cables down.

    • Remove the speaker cables from underneath the black connector ribbons.

    • The cables are hooked underneath black connector ribbons; carefully unhook them.

  5. eIK3uqxgXRd4ayWa

    • Gently pry both speakers away from adhesive with metal spudger tool.

    • Always use a nylon spudger or plastic opening tool before a metal spudger. Metal spudgers are great for serious prying power but can damage your device if used incorrectly.

    • The speakers can now be completely removed from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
