Insignia Ice Maker NS-IMP26SS7 Fan Replacement

Geschrieben von: Evan Taylor
  • Kommentare: 1
Insignia Ice Maker NS-IMP26SS7 Fan Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

This guide will show the steps required to disassemble an Insignia Ice Maker and replace the fan inside. It should take approximately 5-10 minutes.

  1. nmt16UKVWANT6nXI
    nmt16UKVWANT6nXI
    lh2xCIlYCkL6vYRB

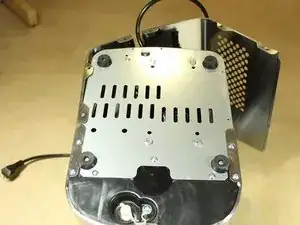

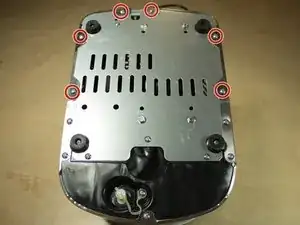

    • Undo the 6 Screws found on the bottom edge holding the rear casing on.

    My Insignia ice maker doesn't work. Water gets cold but doesn't freeze. Thermostat issue?

    Burke Hansen -

  2. NDa51CbrNNSbgnrD

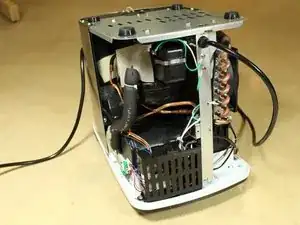

    • Pull the casing off.

  3. Gr1MQWDXM5ikr3qI
    Gr1MQWDXM5ikr3qI
    ZhYrl6NBTiN3tJFW

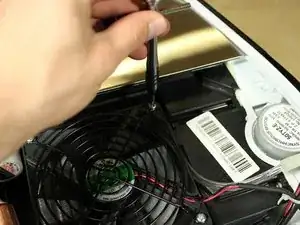

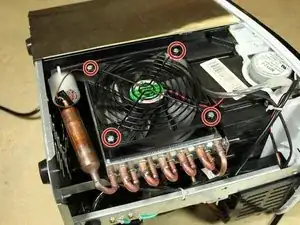

    • Locate the fan on the side of the Ice maker and undo the 4 screws holding it in place.

  4. xKbUrwuFx2qAeqHR
    xKbUrwuFx2qAeqHR
    hfhD6jjPa2qdQ2M4

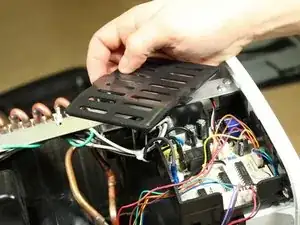

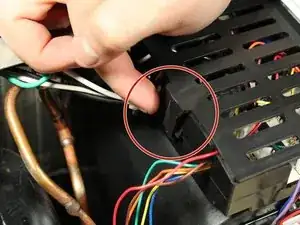

    • Remove the cover from the circuit board by pressing against the lever to the side. A pry tool may be needed.

  5. fuJssTwAGJBvxFbA
    fuJssTwAGJBvxFbA
    lg4Kx2YWO3W2cxsK
    ZjCSeVBmNhTUuVDs

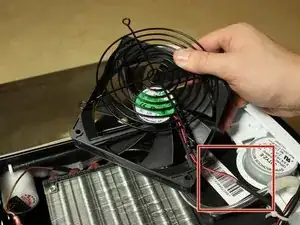

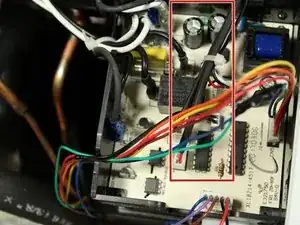

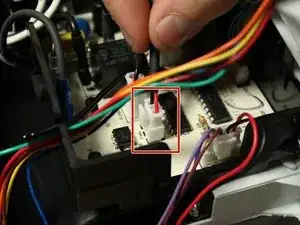

    • Follow the fan's power cable and unplug.

    • You may have to cut a zip tie holding the cable in place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
