Insignia Ice Maker NS-IMP26SS7 Fuse Replacement

Geschrieben von: Evan Taylor
  • Kommentare: 0
Insignia Ice Maker NS-IMP26SS7 Fuse Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

10 Minuten

Einleitung

How to replace the fuse on Insignia Ice Maker.

  1. 5kvAPfGFiGJQioXR
    5kvAPfGFiGJQioXR
    W5iXEWaVlLFBsi1Q
    4FbhvOoOwNr3CE2H

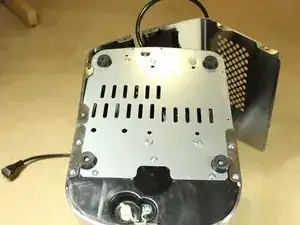

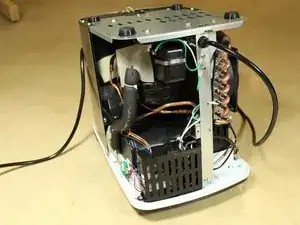

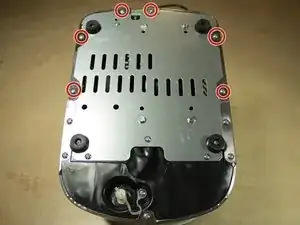

    • Remove the 6 screws along the bottom of the rear casing.

  2. RkksElpAvhX6Q25W
    RkksElpAvhX6Q25W
    nPHVpQBtbhcOAgIb

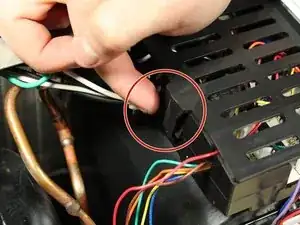

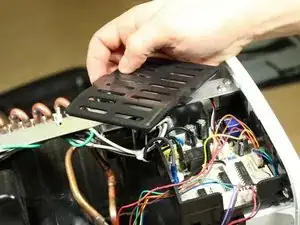

    • Remove the plastic cover over the circuit board by pressing the lever on the side. A pry tool may be required.

  3. Jl1GWMmLO5QVjaRv
    Jl1GWMmLO5QVjaRv
    s2IUjS1ErpOBxnfZ
    kBMT41vONnCmIoHy

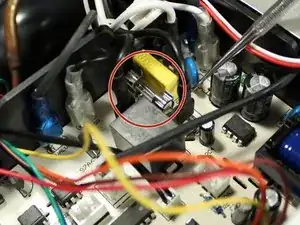

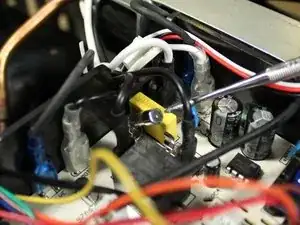

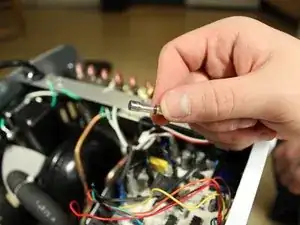

    • Remove the fuse with a plastic pry tool.

Abschluss

To reassemble your device, follow these instructions in reverse order.
