This guide demonstrates how to replace the internal speakers on an Insignia Wi-Fi Windows 8 Tablet. In case of audio malfunctions, follow this guide to replace the internal speakers on your tablet.
Werkzeuge
-
-

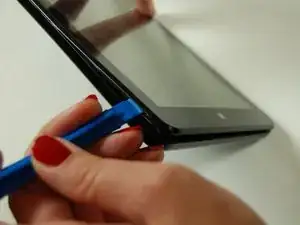

Begin the speaker replacement by inserting the plastic opening tool into the corner of the device.
-

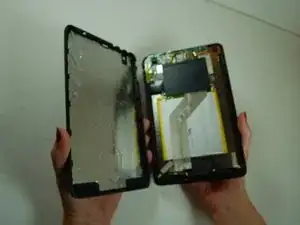

Work the plastic opening tool along the edge until you have separated the screen from the back plate.
-
-
-
Gently set the tablet screen-side down.
-

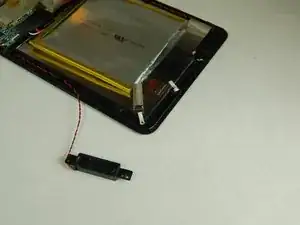

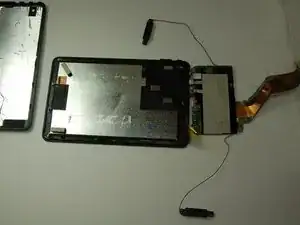

The speakers can be located at the bottom of the tablet, below the battery.
-
Using a screwdriver, remove the five 1.2 mm Phillips #1 screws that hold the speakers to the tablet.
-
-
-
Once faulty speakers have been unscrewed, disconnect the speaker and attach the new speaker to the mother board.
-
To reassemble your device, follow these instructions in reverse order.
