This product plays both CD's and Cassettes as well as AM/FM radio stations.

Before attempting this replacement, make sure to use a anti-static strap to prevent circuit damages to your device.

  1. gPIjCVR2njRLEv2d
    gPIjCVR2njRLEv2d
    E3bLRcgUFoE2FlDB

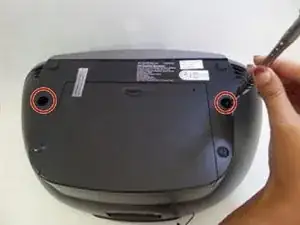

    • Turn the boombox around to see the back, and then flip it upside down.

    • Insert a 2.5mm flathead driver into the two holes next to the battery compartment.

    • Turn the driver counterclockwise several times to loosen and pull out the 17mm screw.

  2. Nm2SfjWBleVxVGYK

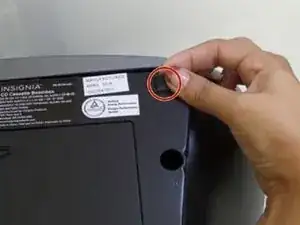

    • Peel off the two black square foams in front of the battery compartment to reveal a screw under each one.

  3. 2n5QRJeYeNbOSMmJ
    2n5QRJeYeNbOSMmJ
    QihmfecacCJQkSnC

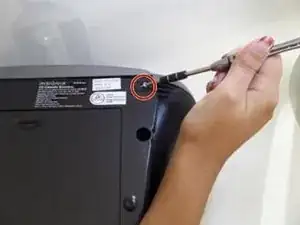

    • Remove the two 8mm screws using a 2.5mm flathead driver.

    • The front grey panel will loosen up once the final screw is removed.

  4. 6MjrQkf2mOxYnS3B
    • Turn the boombox on its back.

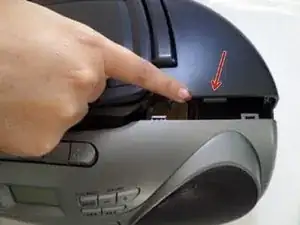

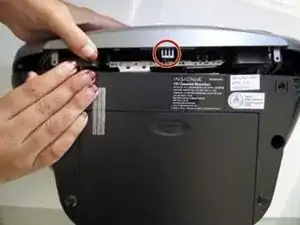

    • Release the front panel by pushing down on the latches holding the panels together.

    • There are four silver latches on the top side of the panel and one on the bottom.

    • Do not force the panel comletely off, there are cables attached inside.

  5. vZjThWpWgbuUG2LL
    vZjThWpWgbuUG2LL
    TTGMwogXipLMCmXH

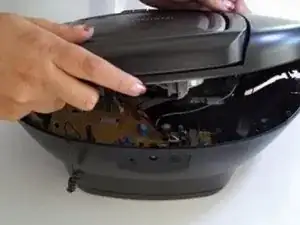

    • Turn the boombox around to view the back and lift the handle up.

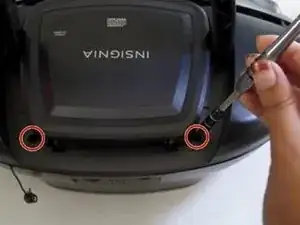

    • Using the same driver with 2.5mm flathead, remove the two 14mm screws under the handle.

    • Gently lift the black top but do not pull completely away.

  6. DOG3FFLg4FJZftjE
    • Unplug the red and black wires from the large yellow motherboard by pulling upwards.

  7. BdVGrOPxPxvSdwMI

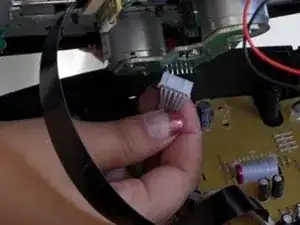

    • Unplug the thick, white and pink cord from underneath the black top by pulling downwards.

  8. Fn6fR5gYrSMZPCkY

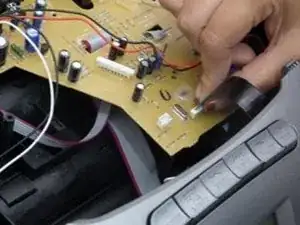

    • Remove the black shiny strip from both ends of the white motherboard adaptor.

  9. d2MeRi1ltQFd3cbM

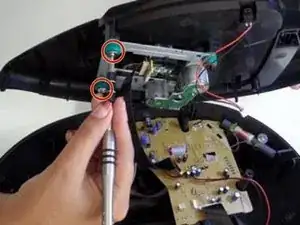

    • Using a Phillips #0, remove the two 11mm screws attached to the green legs underneath the top panel.

  10. T4v1EjiQNywCPdYN

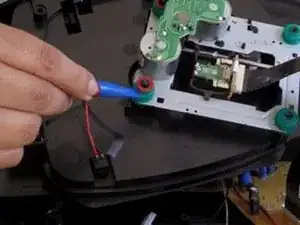

    • With a plastic opening tool, take off the red rings on the other two green legs.

    • The red rings fall off easily once loosened.

  11. HZBhjnbLXqeusZdf

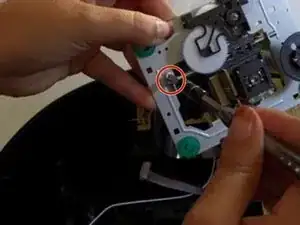

    • Using a JIS 1, remove the 8mm screw on the grey, square plate.

  12. VQ4BxMkv5ZMMTOHR
    VQ4BxMkv5ZMMTOHR
    BlajefSXyAhPkQop
    4IZ4INjjGKs6khCg

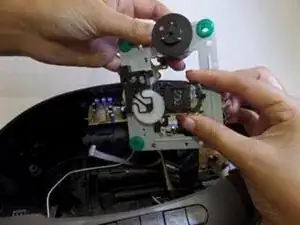

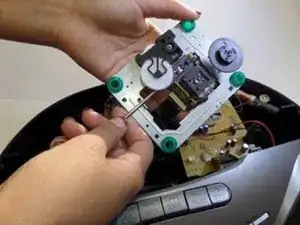

    • Slide the silver bar out.

    • Everything will be loosened. Support it with your hand

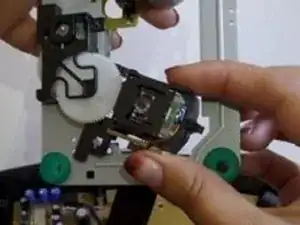

    • The square cube with the tiny lense is loosened. Slide it down to take out of the nook.

    • Detach the black tape so the cube is completely by itself. Replace the cube with a new one.

Abschluss

To reassemble your device, follow these instructions in reverse order.
