Turn the boombox around to see the back, and then flip it upside down.
-
Insert a 2.5mm flathead driver into the two holes next to the battery compartment.
-
Turn the driver counterclockwise several times to loosen and pull out the 17mm screw.
-
-
-
Peel off the two black square foams in front of the battery compartment to reveal a screw under each one.
-
-
-
Remove the two 8mm screws using a 2.5mm flathead driver.
-
The front grey panel will loosen up once the final screw is removed.
-
-
-
Turn the boombox on its back.
-
Release the front panel by pushing down on the latches holding the panels together.
-
There are four silver latches on the top side of the panel and one on the bottom.
-
-
-
Turn the boombox around to view the back and lift the handle up.
-
Using the same driver with 2.5mm flathead, remove the two 14mm screws under the handle.
-

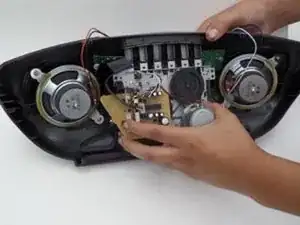

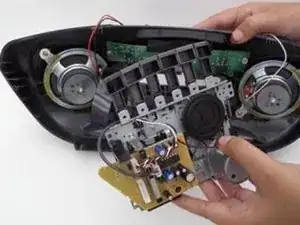

Gently lift the black top but do not pull completely away.
-
-
-

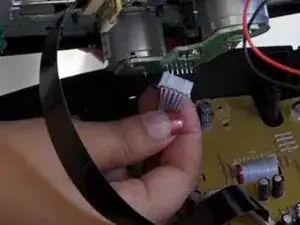

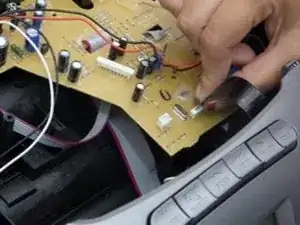

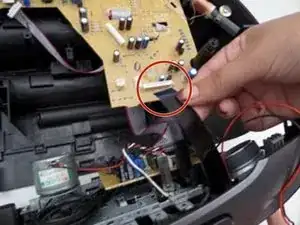

Disconnect the black shiny tape connecting the motherboard to the front of the device
-

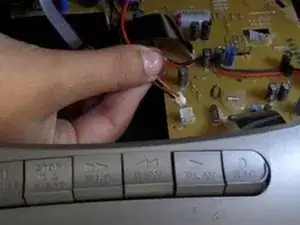

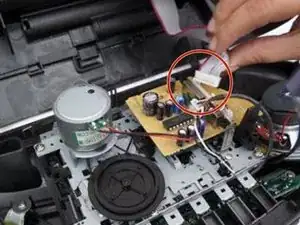

Also disconnect the pink and white wires connecting the cassette unit to the device.
-
-
-

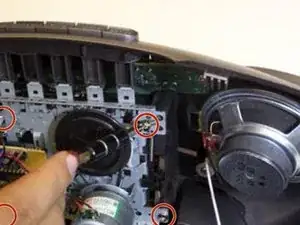

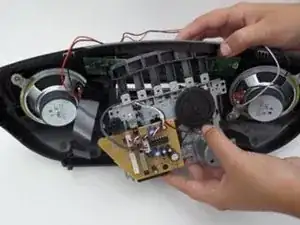

To remove the cassette unit, use a 2.5mm flathead on the 4 screws holding the unit together.
-
-
-

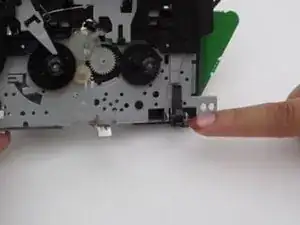

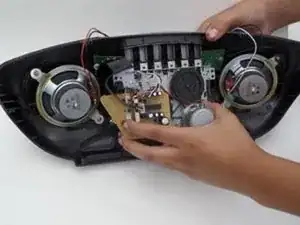

While pressing the eject bottom, pull the cassette unit down and away from the front panel.
-
To reassemble your device, follow these instructions in reverse order.
