Insignia NS-CLIP02 30-Pin Connector Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

Keine Schätzung

Einleitung

If your Insignia NS-CLIP02 is not connecting to your Apple device, follow this guide to replace the 30-pin connector. The 30-pin connector transmits audio from the iPhone/iPod to the Insignia NS-CLIP02. A faulty 30-pin will result in distorted or no audio, and no charge coming into the connected device.

Before using this guide, be sure to inspect the spot in which the iPhone/iPod plugs into the device for debris that might be causing the audio issues. If you have another compatible device, be sure to test it on the 30-pin to be sure the iPhone/iPod is not the issue.

Before beginning be sure that the Insignia NS-CLIP02 is not plugged in to any socket, and disconnect any device connected to the 30-pin connector.

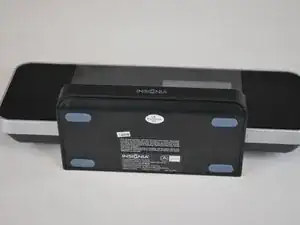

  1. aCVmj6cCTkPC4UOy

    • Locate the bottom of the device.

  2. hBMu32UCCBPQeZvn

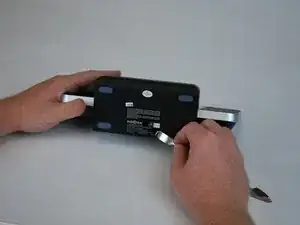

    • Begin by using the Metal Spudger to peel back the adhesive sticker and locate the screw beneath the sticker.

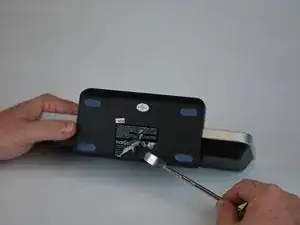

  3. GC2ClKqOhuXL4xWj

    • Locate the 11mm screw beneath the sticker.

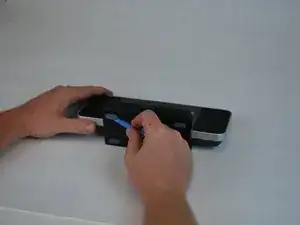

  4. FmFfPmXJMZbEW3Zx

    • Using the Plastic Spudger, peel off the adhesive gel stoppers.

  5. SOLHY2HNO4UkrNmR

    • Continue peeling the rest of the gel stoppers from the bottom of the device.

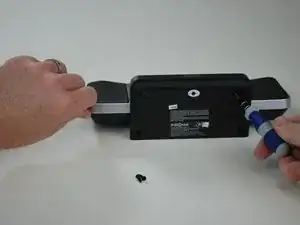

  6. cVFeAeGSQoqEujol

    • Begin unscrewing the six 11mm screws with a Phillips head screw driver.

  7. KVAdpIqXCSKZyqhD

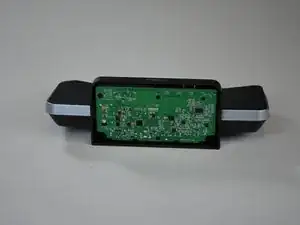

    • Once you peel off the bottom from the device, you will see the motherboard.

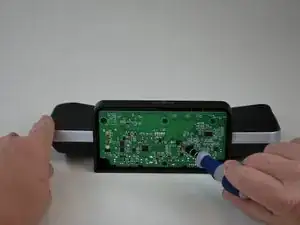

  8. QyJULFEBVQO3oXPv

    • Unscrew the 9.5mm screw located near the center of the motherboard with a Phillips head screw driver.

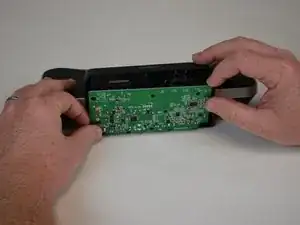

  9. Xr3aVABGmtEMvLCD

    • Lift the motherboard from the device.

  10. X1DlmuDnnZLbJ1CA

    • Locate the four plugs connecting the motherboard to the rest of the device.

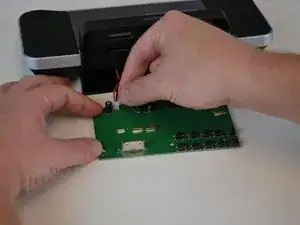

  11. GFXaTovZA2r13ioe

    • Begin with removing the plug to your left.

  12. oL4rTG5NkCsf65NI

    • Remove the plug to your right from the motherboard.

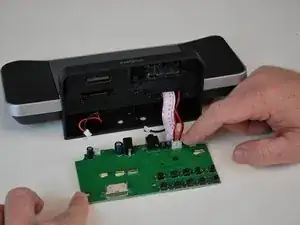

  13. dV1NAafxQMdGin3X

    • Remove the plug in front of the LCD screen plug.

  14. ceFF3hHoBHgCjaqO

    • Remove the LCD screen plug. Then, follow the previous instructions in reverse, replacing the old motherboard with the new one to fix the 30-Pin Connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
