Einleitung

  1. dw3GIBSSOoW2TNlp
    dw3GIBSSOoW2TNlp
    pfP6CcMKbRFOTUoC
    • Turn the power off. Slide the power button to OFF.

  2. prQGRMGDw5doPbjW
    prQGRMGDw5doPbjW
    IOJ2KgMP22IoBKSQ
    • Unplug AC adapter from car cigarette lighter.

  3. KvjGTKOyvnhiShEL
    • Make sure there is no DVD or CD in the disc tray

  4. AbbJlwAxAyOpByLd
    AbbJlwAxAyOpByLd
    yOZF6CGYmrGltpoN
    • Unscrew the nine 9mm screws with a JIS #000 screwdriver.

  5. qyCIOMbvQBNIRpmc
    qyCIOMbvQBNIRpmc
    sGnLl2N4DsFasqVX
    vUGnfICiiRaevuoP
    • Pry off back panel with prying tool, then remove by hand.

  6. k4qwtSVU6uAqQrMF
    k4qwtSVU6uAqQrMF
    afYHwZAFbyEO3nhu
    • After the back is removed and the disk tray is loose from the bottom, locate the two, 3 mm screws that hold the tray to the hinge.

    • Unscrew them with the JIS #000 screwdriver.

  7. PZaNVh2ehADEaNw3
    • Slide the tray up and off of the hinge completely.

  8. bqLIogWdUaJdJr1X
    • Locate the disk reader, it will be right under the disk chamber.

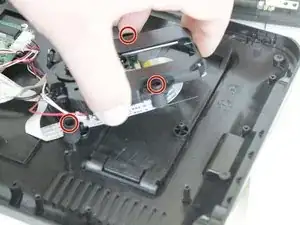

  9. o1IbHbRPA2hJDpNj
    • Pick it straight up, it should slide off the three pegs holding it in place, if not, wiggle each peg individually.

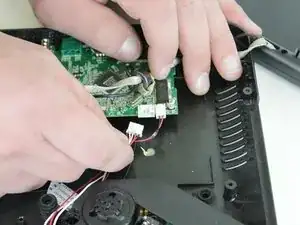

  10. MvqPb5H5mQNBM26k
    • Once you have it loose, unplug it from the PC Board. Then the disk reader can be removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
