Einleitung

  1. dw3GIBSSOoW2TNlp
    dw3GIBSSOoW2TNlp
    pfP6CcMKbRFOTUoC

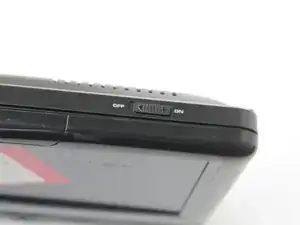

    • Turn the power off. Slide the power button to OFF.

  2. prQGRMGDw5doPbjW
    prQGRMGDw5doPbjW
    IOJ2KgMP22IoBKSQ

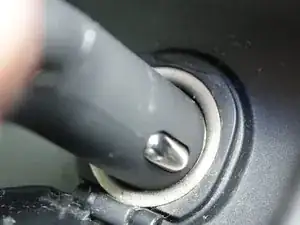

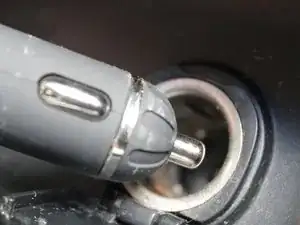

    • Unplug AC adapter from car cigarette lighter.

  3. KvjGTKOyvnhiShEL

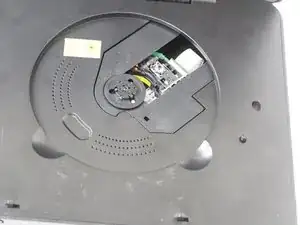

    • Make sure there is no DVD or CD in the disc tray

  4. AbbJlwAxAyOpByLd
    AbbJlwAxAyOpByLd
    yOZF6CGYmrGltpoN

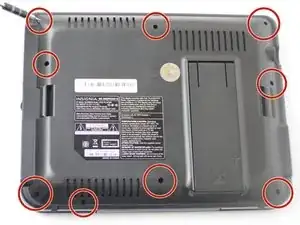

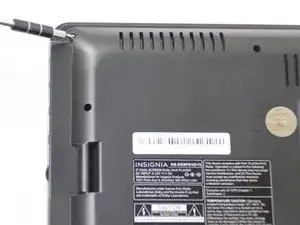

    • Unscrew the nine 9mm screws with a JIS #000 screwdriver.

  5. qyCIOMbvQBNIRpmc
    qyCIOMbvQBNIRpmc
    sGnLl2N4DsFasqVX
    vUGnfICiiRaevuoP

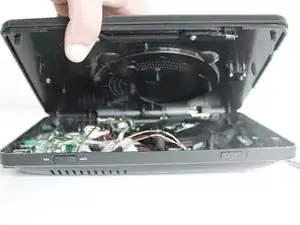

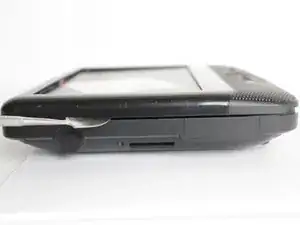

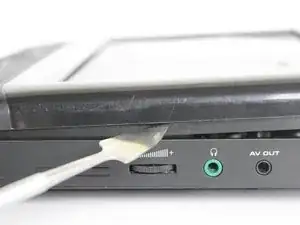

    • Pry off back panel with prying tool, then remove by hand.

  6. s2mbqFMiT33fy5FG

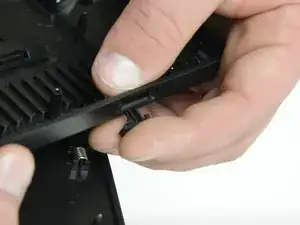

    • After the back is removed and you can see the interior of the device, push the old latch out.

  7. 5LNS5EAG42DZnPZP
    5LNS5EAG42DZnPZP
    4POy121SMnimrSyL

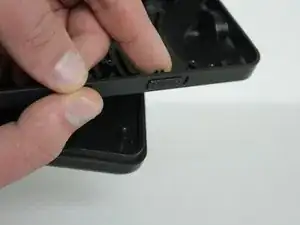

    • Push the new latch in where the old latch was previously held

    • You can lightly tap it from the inside to make sure the new latch is sliding left and right.

Abschluss

To reassemble your device, follow these instructions in reverse order.
