This guide shows how to replace the speakers on the Insignia NS-DS9PDVD15.

  1. dw3GIBSSOoW2TNlp
    dw3GIBSSOoW2TNlp
    pfP6CcMKbRFOTUoC
    • Turn the power off. Slide the power button to OFF.

  2. prQGRMGDw5doPbjW
    prQGRMGDw5doPbjW
    IOJ2KgMP22IoBKSQ
    • Unplug AC adapter from car cigarette lighter.

  3. KvjGTKOyvnhiShEL
    • Make sure there is no DVD or CD in the disc tray

  4. AbbJlwAxAyOpByLd
    AbbJlwAxAyOpByLd
    yOZF6CGYmrGltpoN
    • Unscrew the nine 9mm screws with a JIS #000 screwdriver.

  5. qyCIOMbvQBNIRpmc
    qyCIOMbvQBNIRpmc
    sGnLl2N4DsFasqVX
    vUGnfICiiRaevuoP
    • Pry off back panel with prying tool, then remove by hand.

  6. k4qwtSVU6uAqQrMF
    k4qwtSVU6uAqQrMF
    afYHwZAFbyEO3nhu
    • After the back is removed and the disk tray is loose from the bottom, locate the two, 3 mm screws that hold the tray to the hinge.

    • Unscrew them with the JIS #000 screwdriver.

  7. PZaNVh2ehADEaNw3
    • Slide the tray up and off of the hinge completely.

  8. apSGR1NUBfopp2iL
    • After the bottom cover and disk tray have been removed, remove the back panel from the top half.

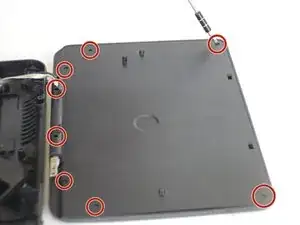

    • There are six, 9mm screws on the bottom cover and 2 screws on the hinge. Remove them with the JIS #000 screwdriver.

  9. pF1pmYaInVeKABIK
    pF1pmYaInVeKABIK
    yHnZjUGe2mRVLrik

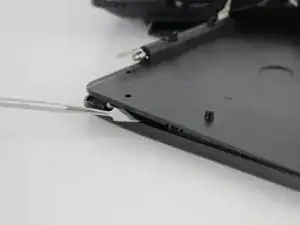

    • Once all the screws are removed, pry off the cover with the pry tool.

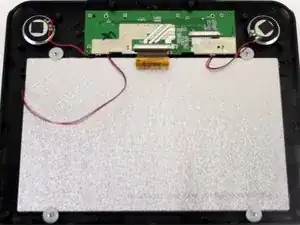

    • You'll see the PC board, back of the speakers, and the back of the screen.

  10. JSDjaw1E25VYBJVj
    JSDjaw1E25VYBJVj
    vhocTPpV54ICI4ZB

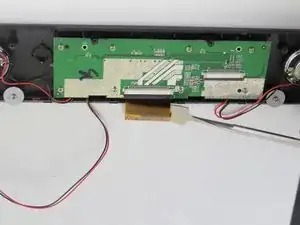

    • Remove the ribbon cable carefully with the pry tool.

    • First, push out the black portion.

  11. FEwsQLlrOHSQZKvc
    FEwsQLlrOHSQZKvc
    fdQEWYvdmD31xNfy

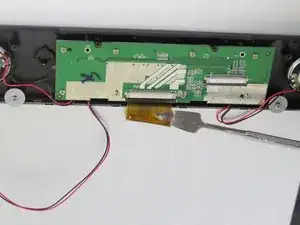

    • Then, push out the 'ribbon' with the pry tool.

  12. kolsCv4kpGXAWeKS
    kolsCv4kpGXAWeKS
    Ay4FIv6gnjIdAHrp

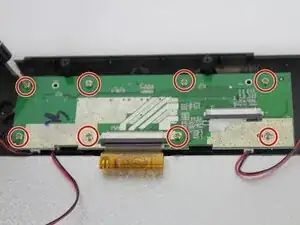

    • After the ribbon cable is removed, unscrew the eight, 9 mm screws from the PC board

  13. qQLXeI2RFqixltlW
    qQLXeI2RFqixltlW
    yvq2WtmDUWZfaGaH

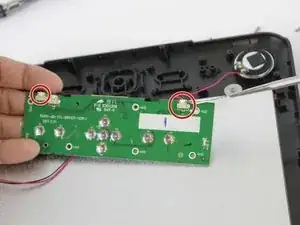

    • Flip over the PC board. Remove the two sets of red and black wires which connect to the speakers.

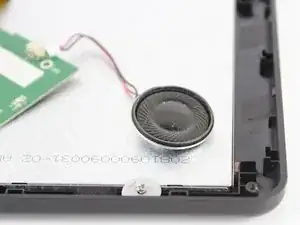

    • Use the pry tool at the white clip, to remove the wires. Then you can remove the speakers.

    • The wire second to left connects to the screen. Remove the far left wire--circled in the first picture-- to remove the left speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
