Insignia NS-F12R6-SS Oscillation Arm Replacement

Schwierigkeitsgrad

Moderate

Schritte

21

Zeitaufwand

5 - 10 Minuten

Einleitung

The oscillation arm controls the back and forth motion of the fan. A broken or compromised oscillation arm will inhibit the fan oscillation function.

  1. NSnXXFqLnrZGoQkw
    NSnXXFqLnrZGoQkw
    VxAWkUSaLHDkHNWr

    • Unplug your fan.

    • Remove the 20 mm bolt that fastens the fan ring located at the bottom of the fan cage with a Phillips #3 screwdriver.

    Missing details- when unscrewing the bottom bolt, add a side note to have the viewer hold both sides and add pressure to unscrew

    Aliyah Malapit -

  2. yCEqqSEdfVGXUGUG

    • Remove the ring that runs around the edge of the fan cage.

  3. C5A1ebcTqZjfDrL2

    • Remove the front of the fan cage.

    Missing details- when removing the fan cage, remind viewer to use both hands to remove the cage to avoid damage to the fan.

    Aliyah Malapit -

  4. Sf1GrKJAYQBrBJfU

    • Remove the 8 mm bolt fastening the fan blades to the rotor with a Phillip #3 screwdriver.

    Prefer a picture taken from an upward angle, similar to the step beforehand, to reveal the screw.

    Missing detail- remind viewer to use Phillips #2 screw.

    Aliyah Malapit -

    I lost this screw and I want to buy it but I don't know the exact size. It says 8mm but that is the length size right?

    Miguel Dang -

  5. kyNsmEhZ5OGGaDDk

    • Take caution when removing the fan blades. They can be sharp!

    • Slide the fan blade off the end of the rotor.

  6. crJkSiioNpikoBcq

    • Unscrew the four 8 mm bolts that fasten the back of the fan cage back to the motor housing with a Phillips #3 screwdriver.

    Can also use the Phillips #2 screwdriver or state when using another screwdriver.

    Aliyah Malapit -

  7. MBeoO1MVNMnbsODg

    • Pull the back cage off.

  8. trw4XPHLUNvCvoej
    trw4XPHLUNvCvoej
    BMD6nOtUTPsKGwYO

    • Unscrew the 10 mm screw in the center hole of the oscillation knob with a Phillips #3 screwdriver.

  9. 4hWTUuyuyCRJcXnS

    • Remove the oscillation knob.

  10. KLrS61L5qsMYpGZL

    • Use your fingers to gently pull the power knob directly away from the motor housing.

  11. YMvVVMTuUWQ2Rn1T

    • Unscrew the flat 17 mm nut fastened at the bottom of the power knob with a small crescent wrench.

  12. 2KL5eTrRkyTYp53k
    2KL5eTrRkyTYp53k
    HIgLKBcLUtiiyKZp

    • Remove the four 6 mm bolts and small washers that secure the front face of the motor housing with a Phillips #3 screwdriver and remove the washers.

  13. fPLCkUZMu5jfASNo

    • Pull the front face of the motor housing off toward the front of the rotor.

  14. hnJkksObATjAWSPc
    hnJkksObATjAWSPc
    ZHnMIsPFL2rMMref

    • Remove the 10 mm triangular-headed bolt with a Phillips #3 screwdriver.

  15. Xch2qxk2k5MNkhJL

    • Slide the back end of the motor housing away from the front of the rotor.

  16. pEFmgc65EfHKcrD1

    • Remove the small piece of paper hanging on the power button.

  17. jNnwv2a4RoGEElut

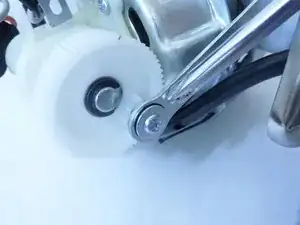

    jNnwv2a4RoGEElut
    OPcSBquNO5D1Jprc

    • Using a Phillips #3 screwdriver, unscrew the the 16 mm long screw fastening the oscillation arm to the lower oscillation gear screw.

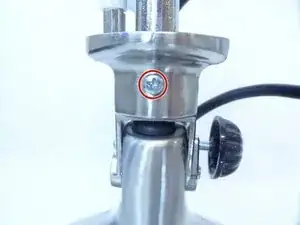

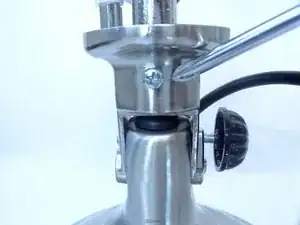

  18. QZxpmpZepkAItroK
    QZxpmpZepkAItroK
    w3RtN2dljK3lomME

    • Using a Phillips #3 screwdriver, unscrew and remove the 4 mm long bolt on the front face of the base that fastens the motor assembly to the base bolt.

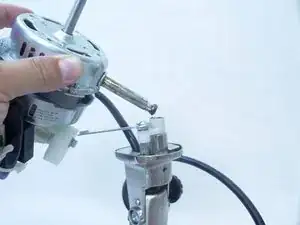

  19. 5gvOERoPgjyUMIAg

    • Remove the fan motor assembly from the base.

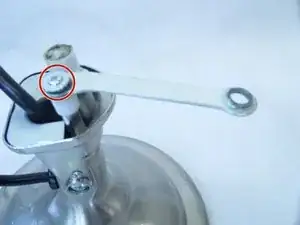

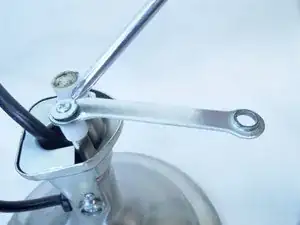

  20. WOSJhIUAvNItdxRA
    WOSJhIUAvNItdxRA
    RXwhEW6CXMFwGxcN

    • Using a Phillips #3 screwdriver, unscrew the 15 mm long bolt fastening the oscillation arm to the fan base bolt.

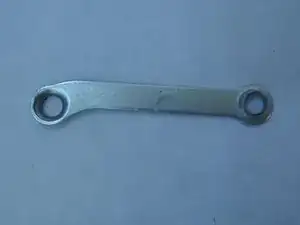

  21. ycu2qFtGiWraU1N4

    • Remove the oscillation arm.

Abschluss

To reassemble your device, follow these instructions in reverse order.
