Insignia NS-F12R6-SS Upper Oscillation Gear Replacement

Geschrieben von: Hank
  • Kommentare: 5
Insignia NS-F12R6-SS Upper Oscillation Gear Replacement

Schwierigkeitsgrad

Moderate

Schritte

20

Zeitaufwand

10 - 15 Minuten

Einleitung

The oscillation gear swivels the head of the fan back and forth by translating power from the motor into the oscillation arm.

  1. NSnXXFqLnrZGoQkw
    NSnXXFqLnrZGoQkw
    VxAWkUSaLHDkHNWr

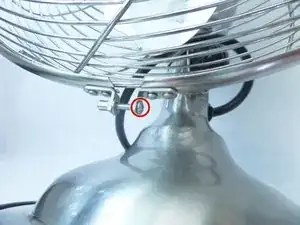

    • Unplug your fan.

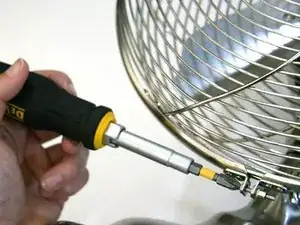

    • Remove the 20 mm bolt that fastens the fan ring located at the bottom of the fan cage with a Phillips #3 screwdriver.

    Missing details- when unscrewing the bottom bolt, add a side note to have the viewer hold both sides and add pressure to unscrew

    Aliyah Malapit -

  2. yCEqqSEdfVGXUGUG

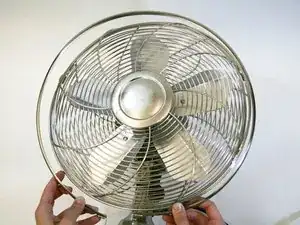

    • Remove the ring that runs around the edge of the fan cage.

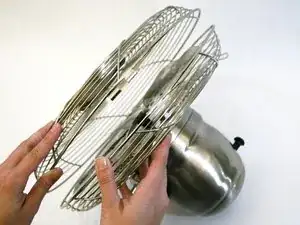

  3. C5A1ebcTqZjfDrL2

    • Remove the front of the fan cage.

    Missing details- when removing the fan cage, remind viewer to use both hands to remove the cage to avoid damage to the fan.

    Aliyah Malapit -

  4. Sf1GrKJAYQBrBJfU

    • Remove the 8 mm bolt fastening the fan blades to the rotor with a Phillip #3 screwdriver.

    Prefer a picture taken from an upward angle, similar to the step beforehand, to reveal the screw.

    Missing detail- remind viewer to use Phillips #2 screw.

    Aliyah Malapit -

    I lost this screw and I want to buy it but I don't know the exact size. It says 8mm but that is the length size right?

    Miguel Dang -

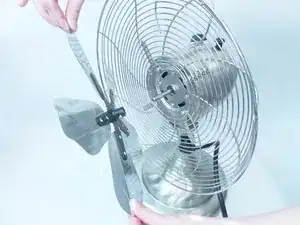

  5. kyNsmEhZ5OGGaDDk

    • Take caution when removing the fan blades. They can be sharp!

    • Slide the fan blade off the end of the rotor.

  6. crJkSiioNpikoBcq

    • Unscrew the four 8 mm bolts that fasten the back of the fan cage back to the motor housing with a Phillips #3 screwdriver.

    Can also use the Phillips #2 screwdriver or state when using another screwdriver.

    Aliyah Malapit -

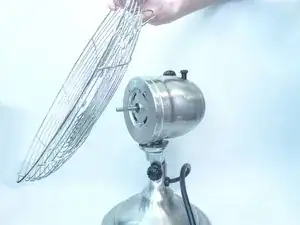

  7. MBeoO1MVNMnbsODg

    • Pull the back cage off.

  8. trw4XPHLUNvCvoej
    trw4XPHLUNvCvoej
    BMD6nOtUTPsKGwYO

    • Unscrew the 10 mm screw in the center hole of the oscillation knob with a Phillips #3 screwdriver.

  9. 4hWTUuyuyCRJcXnS

    • Remove the oscillation knob.

  10. KLrS61L5qsMYpGZL

    • Use your fingers to gently pull the power knob directly away from the motor housing.

  11. YMvVVMTuUWQ2Rn1T

    • Unscrew the flat 17 mm nut fastened at the bottom of the power knob with a small crescent wrench.

  12. 2KL5eTrRkyTYp53k
    2KL5eTrRkyTYp53k
    HIgLKBcLUtiiyKZp

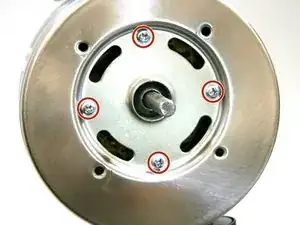

    • Remove the four 6 mm bolts and small washers that secure the front face of the motor housing with a Phillips #3 screwdriver and remove the washers.

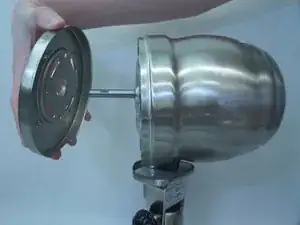

  13. fPLCkUZMu5jfASNo

    • Pull the front face of the motor housing off toward the front of the rotor.

  14. hnJkksObATjAWSPc
    hnJkksObATjAWSPc
    ZHnMIsPFL2rMMref

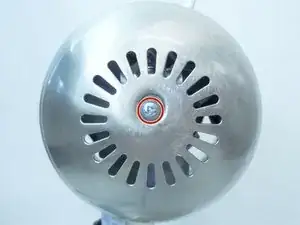

    • Remove the 10 mm triangular-headed bolt with a Phillips #3 screwdriver.

  15. Xch2qxk2k5MNkhJL

    • Slide the back end of the motor housing away from the front of the rotor.

  16. pEFmgc65EfHKcrD1

    • Remove the small piece of paper hanging on the power button.

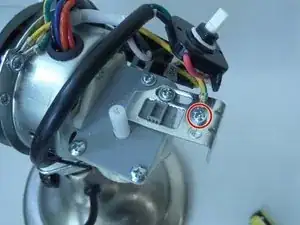

  17. mvpUhsN335pwWflg
    mvpUhsN335pwWflg
    hJJODehxfUpn6HQB
    FFvhdwve4XYFLFjX

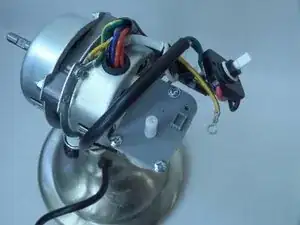

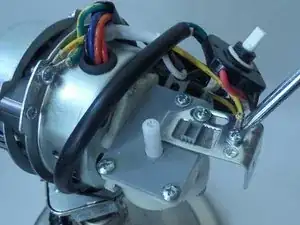

    • Using a Phillips #3 screwdriver, unscrew and remove the 7 mm long bolt and small washer fastening the yellow and green wire to the motor housing support.

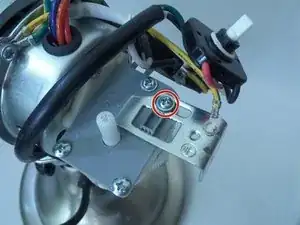

  18. SyKTFFJVXNWNhPwR
    SyKTFFJVXNWNhPwR
    X4VPJjTah2qdcXFD

    • Using a Phillips #3 screwdriver unscrew the 13 mm long screw fastening the motor housing support to the oscillation gear box.

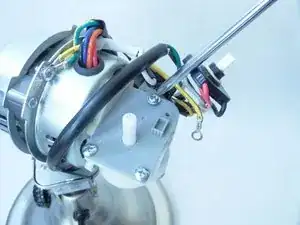

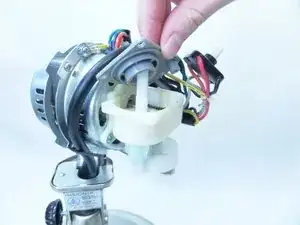

  19. MCBCyJVMptmKVPxT
    MCBCyJVMptmKVPxT
    yUcVXB63vuxJBqdF
    rWaKLZiDBLI4YDDt

    • Using a Phillips #3 screwdriver, unscrew the three 13 mm long screws fastening the grey plate to the top of the oscillation gear box.

    • Remove the grey cap covering the oscillation gear box.

  20. QpMRKsMLGMSE2QEZ
    QpMRKsMLGMSE2QEZ
    cMgGuPxXERUS6AIy

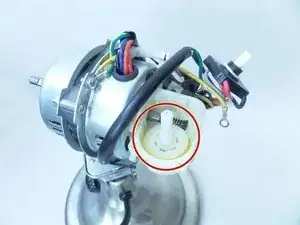

    • Remove the upper oscillation gear.

Abschluss

To reassemble your device, follow these instructions in reverse order.
