Insignia NS-HDRAD Circuit Board Replacement

Geschrieben von: Joshua Miller
  • Kommentare: 1
Insignia NS-HDRAD Circuit Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

10 Minuten

Einleitung

The motherboard is connected to the LCD screen and daughterboard. It is important to unscrew and disconnect the LCD and daughterboard before removing the motherboard so as not to damage these components.

  1. qImmZJdjsKPuuTtq
    qImmZJdjsKPuuTtq
    mhHTldEicqoXO6f4

    • Be sure the radio is turned off by pressing the red power button.

    • Or, if using the charger, remove the power cord.

  2. GEqJlLTrUGJuK3jU
    GEqJlLTrUGJuK3jU
    JyeCtpxpmXQ5tNQq
    QPDKLRDZqeYCDPC4

    • Remove the panel on the back side of the radio by pressing the arrow in a downward motion.

  3. qHooGeEqHAfcIZkX
    qHooGeEqHAfcIZkX
    dFMokLimswG2Bsam
    xvNQPCrIrvDlfGGt

    • Remove the batteries one-by-one by pulling from the positive terminal of the top left battery.

    • The battery's positive terminal is indicated by a "+" on the side.

    • Remove the adjacent battery by simply pulling it out of the holder.

    • Repeat for the bottom row of batteries.

  4. DFUxITGgqYZVfV2U
    DFUxITGgqYZVfV2U
    BrfJPDRrx1nnJKDH

    • Using the J1 Philip's head screwdriver, remove the 4 screws from the back side of the radio.

    • The 2 bottom screws are difficult to remove. Once unscrewed, either use a spudger to pull it out or knock on the front side of the radio to pop it out.

  5. WGo4i5iidgEXeqK6
    WGo4i5iidgEXeqK6
    vOAcVPsE5S1SbKkF
    EW3w4UuVnnUBgQvH

    • Using the metal spudger, pry open the panel with the metal spudger. Work you way around the whole device.

    • The headphone jack is flush with the paneling so the panel must be moved away from the jack completely to remove.

    • When reassembling, the ports don't fit into their respective holes in the back panel. Use the sharp metal end of the spudger and pull the ports to their slots.

  6. jBMBexABgh2meJ6T

    • Using the pliers, separate the wire connector above the left speaker.

    • If this is the first time removing the wire connector, there may be glue holding the wires flush against the panel. Remove this glue with a finger or the plastic spudger.

    • Using regular pliers or needle nose pliers are fine for this tasks. They are interchangeable.

  7. 6ykdnYK2EAUFHTJM

    • Using the J1 Philip's head screwdriver, unscrew the bolt attaching the antenna to the back panel.

  8. BoAuLJM1PSf42LBm
    BoAuLJM1PSf42LBm
    VegkCijodkMmWr2b
    P6HxvqdZwPVDu6Of

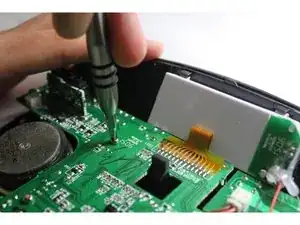

    • Using the J1 Philip's head screwdriver, remove the 6 screws holding the central circuit board and the upper right circuit board to the panel.

    • Because the two circuit boards are soldered together, we are going to treat them as one circuit board and leave them connected.

  9. wKsbnvFBW3A2sKRS
    wKsbnvFBW3A2sKRS
    yv4YlLZXvntJ2oZm

    • The speakers are magnetic and will attract metal objects. Try to avoid get your tools stuck.

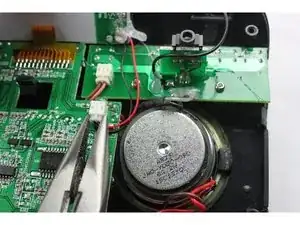

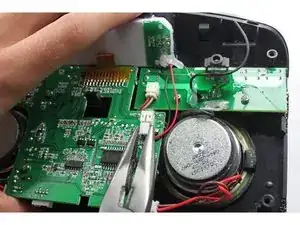

    • Using needle nose pliers or regular pliers, disconnect the wire connector with the red and black wires on the mother board by grabbing the end of the wires.

  10. YZytJAYfYp2CRUME

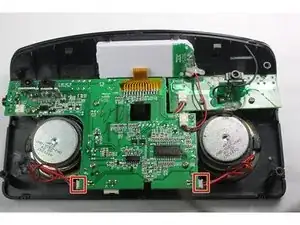

    • Using the needle nose pliers or regular pliers, separate the wire connectors attaching the speakers to the circuit board on its right and left side.

  11. 5skjaUTf1FqyPNYg

    • This step is completely optional. Leaving the wire connector alone will not cause a problem.

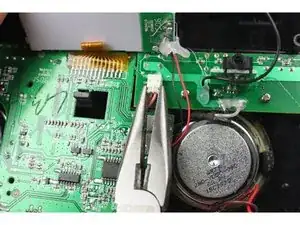

    • Using the needle nose pliers or regular pliers, remove the wire connector with the brown and pink wires to separate the small circuit board from the larger circuit board.

  12. YXvDThXhmjiLldiF

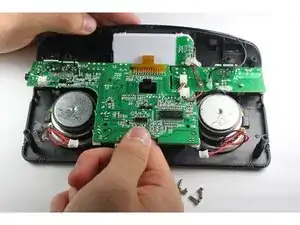

    • Do not lift up the board too fast or too high. This may cause the copper ribbon to break and disconnect the LCD screen permanently.

    • Loosen the circuit board by lifting it up.

    • If this is the first time removing the circuit board, there will be a weak adhesive holding the circuit board to the front panel. Remove this with a metal spudger or sharp tool.

    • The power button may fall out of place. This is fine and you haven't broken anything, but be sure to place it back before inserting the circuit board.

  13. Z1LIvkUXKN2AuL6n
    Z1LIvkUXKN2AuL6n
    W4OOPCkTQYa1sMQ1

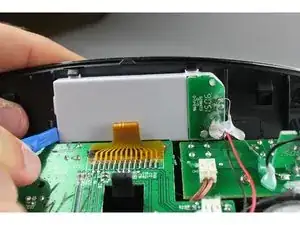

    • Remove the LCD Screen by pulling the black guard away from the LCD screen with a plastic spudger.

    • Use the plastic spudger to lift up the top side of the LCD screen.

  14. vmOgUroABygtlrAh

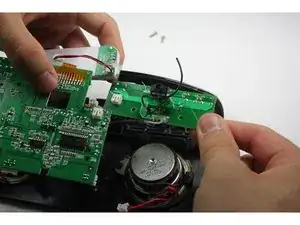

    • This step is important to ensure that the copper ribbon wire connecting the circuit board and the LCD screen is not damaged.

    • Lift the LCD screen up together with the circuit board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
