Insignia NS-HTMC01-B Fan Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide will help you replace a broken or damaged internal fan within your Insignia NS-HTMC01-B ceramic heater. A broken or damaged fan can cause your heater to put out lower amounts of heat, or no heat at all.

  1. UQyv3FLAvRubKTw1

    • Flip your device over so the back panel faces you. You should see a hole containing a screw in each corner of the device.

    • Insert a 4-inch Phillips #1 screwdriver into each hole until connected with the 20 millimeter, sharp-point screw.

  2. M4pOBZnlFRWZff4r

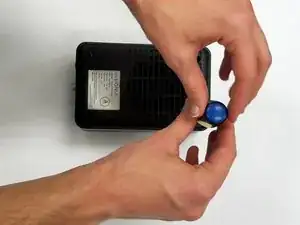

    • Rotate the screwdriver counter-clockwise until screws are removed.

    • Make sure to firmly connect your screwdriver with the head of the screw. A loose connection can strip the screw head, making the screws impossible to remove.

    • Remove the back panel.

  3. gxOygWi2ZGYHVW5N

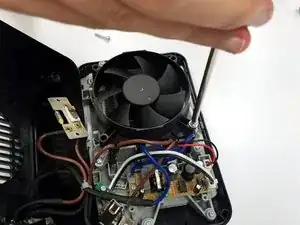

    • Unscrew the four 9 millimeter, sharp-point screws holding the fan in place.

  4. HxGZpViUrHJCLAhu
    HxGZpViUrHJCLAhu
    dFjD4HwKTWQJDJCo

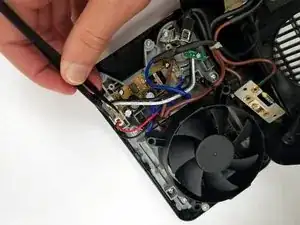

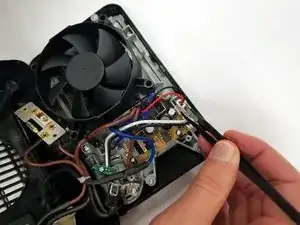

    • Use tweezers to disconnect the red and black wires.

    • Remove the fan.

Abschluss

To reassemble your device, follow these instructions in reverse order.
