Insignia NS-HTMC01-B Power Cord Replacement

Geschrieben von: Rebecca Nunez
  • Kommentare: 0
Insignia NS-HTMC01-B Power Cord Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

This guide will take you through the process of replacing the power cord of the Insignia NS-HTMC01-B.

  1. bJUgyclgioR25dgb
    bJUgyclgioR25dgb
    CjZlUDajWARkJ6f1
    L3C1QLZHkIdUKJLm

    • Flip the device over so the back panel faces up.

    • Unscrew the four screws counter-clockwise from the back panel using a 4mm Phillips screwdriver.

    • You may want to use a flashlight during this step, as the screws are hard to see.

    • Make sure to firmly connect your screwdriver with the head of the screw. A loose connection can strip the screw head, making the screws nearly impossible to remove.

  2. uXktxlCUsYqdtVgT

    • Take the screws out and set them aside.

    • Be sure to set them somewhere flat, so they don't roll away.

    • Gently pull the front panel and back panel apart to open the device.

  3. NbxSdcVYKHeGPUAv

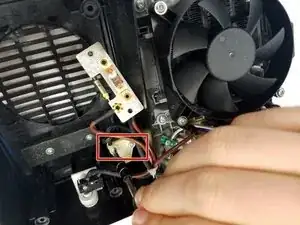

    • Use a Phillips #2 screwdriver to remove the two 1.7mm screws from the white triangular piece covering the power cord.

  4. vgIm54xRCajgLvX4

    • Disconnect all of the blue wires. There should be 3 separate blue-wire connections.

  5. j5E55G1XKeclhiPp

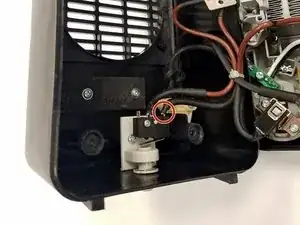

    • Disconnect the second black wire from the rectangular piece above the Tip-Over Safety Switch.

    • Remove power cord.

Abschluss

To reassemble your device, follow these instructions in reverse order.
