Insignia NS-HTMC01-B Power Indicator Light Replacement

Geschrieben von: Emma Walters
  • Kommentare: 0
Insignia NS-HTMC01-B Power Indicator Light Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

Replace the power indicator light of your Insignia NS-HTMC01-B heater.

  1. bJUgyclgioR25dgb
    bJUgyclgioR25dgb
    CjZlUDajWARkJ6f1
    L3C1QLZHkIdUKJLm

    • Flip the device over so the back panel faces up.

    • Unscrew the four screws counter-clockwise from the back panel using a 4mm Phillips screwdriver.

    • You may want to use a flashlight during this step, as the screws are hard to see.

    • Make sure to firmly connect your screwdriver with the head of the screw. A loose connection can strip the screw head, making the screws nearly impossible to remove.

  2. uXktxlCUsYqdtVgT

    • Take the screws out and set them aside.

    • Be sure to set them somewhere flat, so they don't roll away.

    • Gently pull the front panel and back panel apart to open the device.

  3. OnCEMD2H1PS1kiDd
    OnCEMD2H1PS1kiDd
    FLVJhUa4yN2NjkrS
    KCkXNxeKArgUeCDA

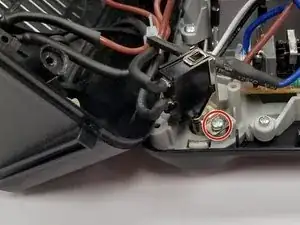

    • Locate the bottom left corner below the fan inside of the heater.

    • There is a small black rectangular box with two cables coming out of it.

    • Using a Phillips #4 screwdriver, unscrew the two screws at the base counterclockwise, and set the screws to the side.

    • Be sure to set the screws on a flat surface to ensure they don't roll away.

  4. 1mpU2qBJWRY5BJUK
    1mpU2qBJWRY5BJUK
    PeSEqnQtKJB6PFaK
    qYd35RYmATVxSxEj

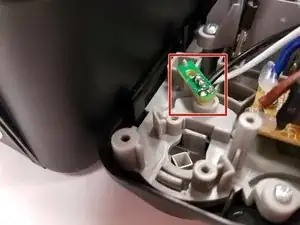

    • After unscrewing the black rectangular box up from the base of the grey frame, locate the small green rectangular light fixture.

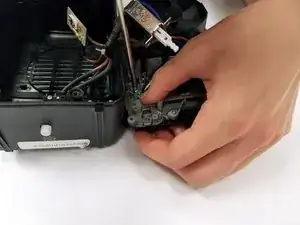

    • Unscrew the one screw from the green rectangle counter clockwise, and set the screw to the side.

    • Gently lift the green circuit board out of the socket by pulling on the black and white cables.

    • At the end of the green rectangle is a light-emitting diode (LED). This is what lights up the power button.

  5. 5Ep1XWMJoLYgkNZY
    5Ep1XWMJoLYgkNZY
    pkCWMbwLqDLLXvtM

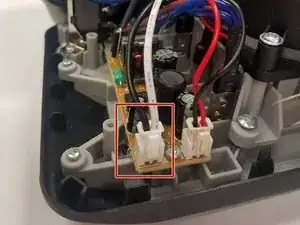

    • To replace the LED, unplug the white jack with the black and white cords from the bigger tan circuit board.

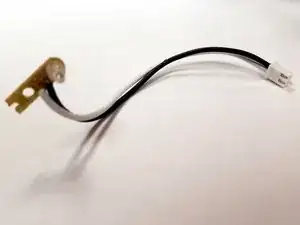

    • Remove the LED cord.

Abschluss

To reassemble your device, follow these instructions in reverse order.
