Insignia NS-HTMC01-B Tip-Over Safety Switch Replacement

Geschrieben von: Rebecca Nunez
  • Kommentare: 0
Insignia NS-HTMC01-B Tip-Over Safety Switch Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will take you through the process of replacing the Tip-Over Safety Switch inside the Insignia NS-HTMC01-B.

  1. bJUgyclgioR25dgb
    bJUgyclgioR25dgb
    CjZlUDajWARkJ6f1
    L3C1QLZHkIdUKJLm

    • Flip the device over so the back panel faces up.

    • Unscrew the four screws counter-clockwise from the back panel using a 4mm Phillips screwdriver.

    • You may want to use a flashlight during this step, as the screws are hard to see.

    • Make sure to firmly connect your screwdriver with the head of the screw. A loose connection can strip the screw head, making the screws nearly impossible to remove.

  2. uXktxlCUsYqdtVgT

    • Take the screws out and set them aside.

    • Be sure to set them somewhere flat, so they don't roll away.

    • Gently pull the front panel and back panel apart to open the device.

  3. 3LOhcWPceIVkKMxV
    3LOhcWPceIVkKMxV
    ONXSpfuiktQQHuuw
    UDtxor1WTDiHWkSO

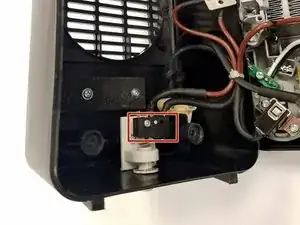

    • Use a Phillips #0 screwdriver to remove the 1.3mm screw on the black rectangle above the Tip-Over Safety Switch.

  4. hQfPlfcOrMTCNi1T
    hQfPlfcOrMTCNi1T
    PnJNwMLIjvfXdj3I
    SvZqGXAWyQINtXNu

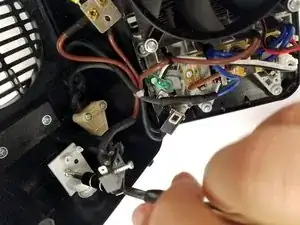

    • Use a Phillips #2 screwdriver to remove the 0.9mm screw from the back panel of the Tip-Over Safety Switch.

    • Remove the back panel and the Tip-Over Safety Switch.

Abschluss

To reassemble your device, follow these instructions in reverse order.
